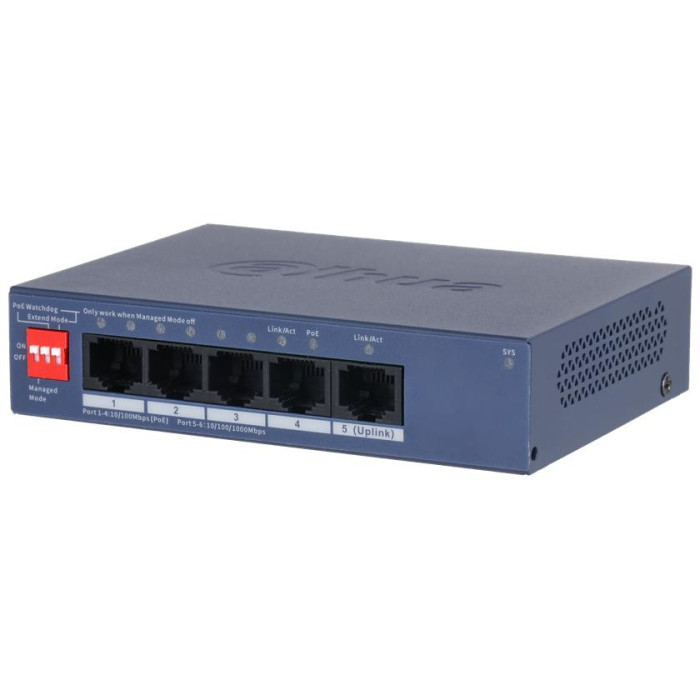

Switch|DAHUA|DH-CS4005-4ET1GT-36|Type L2|PoE ports 4|40 Watts|CS4005-4ET1GT-36

5-Port Cloud Managed Desktop Switch with 4-Port PoE

4 × RJ-45 10/100 Mbps PoE ports, 1 x RJ-45 Gigabit ports. 36 W total PoE budget, 802.3af/at on all PoE ports. DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE. Wide operating temperature ranging from –10 °C to 55 °C. Supports VLAN and loop protection. WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network. Easy config to auto detect and set up network and security systems.

Description

5-Port Cloud Managed Desktop Switch with 4-Port PoE

4 × RJ-45 10/100 Mbps PoE ports, 1 x RJ-45 Gigabit ports. 36 W total PoE budget, 802.3af/at on all PoE ports. DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE. Wide operating temperature ranging from –10 °C to 55 °C. Supports VLAN and loop protection. WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network. Easy config to auto detect and set up network and security systems.

Vendor Homepage

transmission.dahuasecurity.com/en/product-list/Business/CloudManagementSolution/NetworkSwitch/CS4005-4ET1GT-36

Category Code

SWI

10Base-T / 100Base-TX

4

10Base-T / 100Base-TX / 1000Base-T

1

IEEE 802.3

Да

IEEE 802.3ab

Да

IEEE 802.3u

Да

IEEE 802.3x

Да

Модель

DH-CS4005-4ET1GT-36

Тип

L2

Количество портов

5

PoE порты

4

PoE мощность

40 Вт

Пропускная способность

2.4 Gbps

Пропускная способность в пакетах

2.08 Mpps

Блок питания

Внешний

Источник питания

53 VDC, 0.8 A

Диапазон рабочих температур

–10 °C to +55 °C

Размер

115 mm × 84 mm × 27 mm

Количество в транспортной упаковке

1

Объем

0.000732 м3

Вес без упаковки

0.19 кг

Вес в упаковке

0.92 кг
