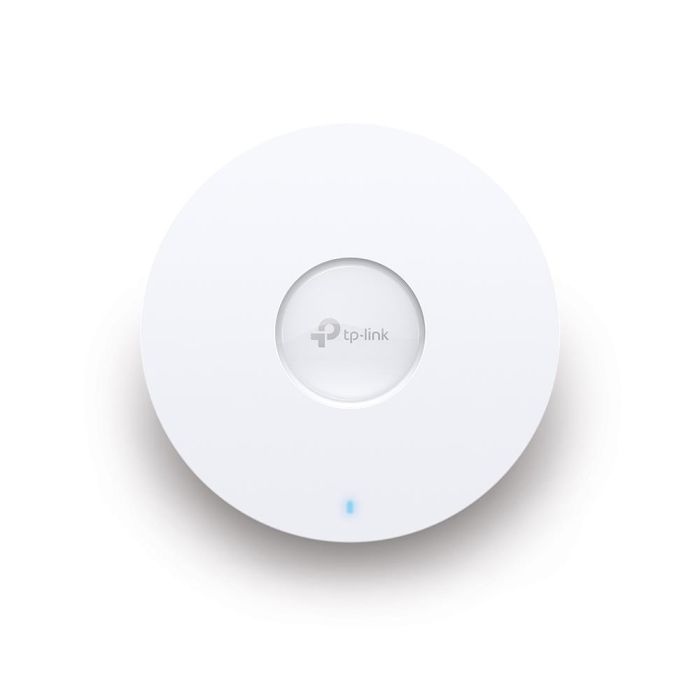

TP-LINK OMADA EAP653

AX3000 Ceiling Mount WiFi 6 Access Point


Ultra-Fast WiFi 6 Speeds

Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.


High-Efficiency WiFi 6

More connected devices can enjoy faster speeds.


Centralized Cloud Management

Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.


160 MHz Channel

Double the data at peak transmission times on a single stream with HE160.


Seamless Roaming

Video streams and voice calls are unaffected as users move between locations.


Omada Mesh

Enables wireless connectivity between access points for extended range and flexible deployment.


PoE+ Powered

Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.


Ultra-Slim Design
Φ160 mm × 33.6 mm elegant design brings more agility.

Description

TP-LINK OMADA EAP653

AX3000 Ceiling Mount WiFi 6 Access Point


Ultra-Fast WiFi 6 Speeds

Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.


High-Efficiency WiFi 6

More connected devices can enjoy faster speeds.


Centralized Cloud Management

Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.


160 MHz Channel

Double the data at peak transmission times on a single stream with HE160.


Seamless Roaming

Video streams and voice calls are unaffected as users move between locations.


Omada Mesh

Enables wireless connectivity between access points for extended range and flexible deployment.


PoE+ Powered

Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.


Ultra-Slim Design
Φ160 mm × 33.6 mm elegant design brings more agility.

Vendor Homepage

www.tp-link.com/ae/business-networking/ceiling-mount-ap/eap653/

Series

Omada

Model name

EAP653

Network Device Type

Wireless Access Point

Data transmission speed

2976 Mbps

IEEE 802.11a/b/g

Yes

IEEE 802.11ac

Yes

IEEE 802.11ax

Yes

IEEE 802.11n

Yes

RJ45

1

802.1X (EAP-MD5, EAP-TLS, EAP-TTLS and EAP-PEAP)

Yes

WPA - Wi-Fi Protected Access

Yes

WPA2 - Wi-Fi Protected Access

Yes

WPA3

Yes

Antenna Type

Built-in

Wireless Frequency Range

2.4/5 GHz

Dimensions

160 × 160 × 33.6 mm

Units per Shipping Box

16

Shipping Box Depth

52 cm

Shipping Box Height

30 cm

Shipping Box Weight

13.8 kg

Shipping Box Width

49 cm

Unit Calculated Volume

0.004777 cubm

Product Net Weight

0.5 kg

Unit Calculated Weight

0.863 kg

CnCode

85176200

Unit Box Width

0.225

Unit Box Length

0.245

Unit Box Height

0.065

Full Description Line

Omada|EAP653|Type Wireless Access Point|Data transmission speed 2976 Mbps|IEEE 802.11a/b/g|IEEE 802.11n|IEEE 802.11ac|IEEE 802.11ax|WPA - Wi-Fi Protected Access|WPA2 - Wi-Fi Protected Access|WPA3|802.1X (EAP-MD5, EAP-TLS, EAP-TTLS and EAP-PEAP)|Antenna Type Built-in|Wireless Frequency Range 2.4/5 GHz|Dimensions 160 × 160 × 33.6 mm
