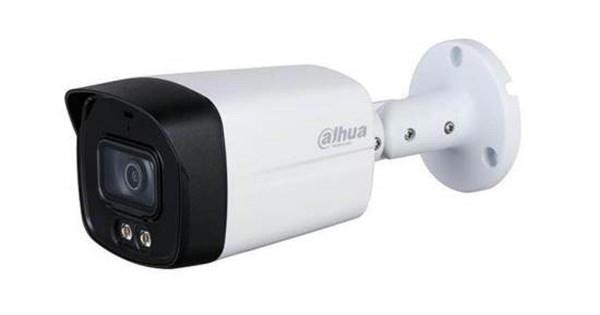

CAMERA HDCVI 5MP LED BULLET/HFW1509TLM-A-LED-0360BS2 DAHUA

Lite Series is suitable for users who requires high quality monitoring products at a reasonable price.

It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications.

This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios.


5Megapixel progressive scan CMOS, 2880 × 1620 @25FPS

Minimum illumination: 0.001 Lux/F1.0, 0 Lux warm light on

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

BLC/HLC/True WDR 120 dB/HLC-Pro

3.6 mm fixed lens (88° HFOV)

Up to 40 meters white LED Illumination. 2 white LED

Built-in mic, audio over coax technology

Bullet design, combined shell, IP67, -40°C~+60°C

Power 12VDC ±30%, 6.4W max

Description

Lite Series is suitable for users who requires high quality monitoring products at a reasonable price.

It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications.

This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios.


5Megapixel progressive scan CMOS, 2880 × 1620 @25FPS

Minimum illumination: 0.001 Lux/F1.0, 0 Lux warm light on

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

BLC/HLC/True WDR 120 dB/HLC-Pro

3.6 mm fixed lens (88° HFOV)

Up to 40 meters white LED Illumination. 2 white LED

Built-in mic, audio over coax technology

Bullet design, combined shell, IP67, -40°C~+60°C

Power 12VDC ±30%, 6.4W max

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Cameras/Lite-Series/5MP/5MP-Full-color/HAC-HFW1509TLM(-A)-LED

Category Code

HSC

Unit Box Height

0.115

Unit Box Length

0.24

Unit Box Width

0.12

Дизайн

Bullet

Тип устройства

Fixed/HDTV/Megapixel/Outdoor

Разрешение

5 - 7 Мпикс

Фокусное расстояние

3.6 - 4мм

Минимальное освещение

0.001 лк

Инфракрасная подсветка

Да

Скорость электронного затвора

PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000

Микрофон

Да

Параметры питания

12V

Требования к электропитанию

12VDC

Потребляемая мощность

6.4 Вт

Тип

Уличная

Размер

198.4 mm × 80.2 mm × 76.2 mm

Количество в транспортной упаковке

1

Объем

0.003312 м3

Вес без упаковки

0.33 кг

Вес в упаковке

0.52 кг
