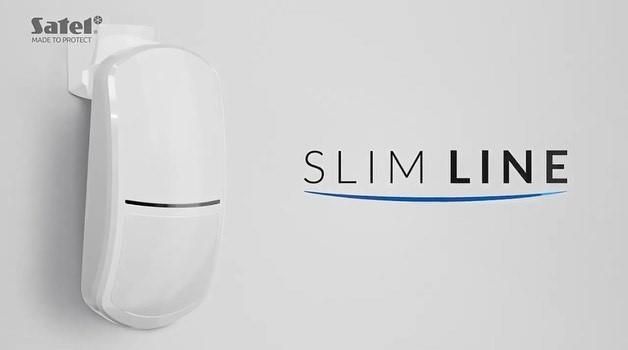

DETECTOR PIR+MW/SLIM-DUAL-PRO SATEL

Elegant, slim enclosure is made of high quality plastic.

Uniform appearance of all detectors installed in the premises makes it difficult for an intruder to identify the specific model used in the system because all of them look the same.

• compliance with EN 50131 Grade 3
• configuring operating parameters: buttons and keyfob
• end-of-line resistors - 1.1 kΩ
• end-of-line resistors - 4.7 kΩ, 5.6 kΩ
• plug-in terminal block
• electronics board protecting cover
• number of available LED indicator colors: 7
• active IR anti-masking
• creep zone protection

Description

Elegant, slim enclosure is made of high quality plastic.

Uniform appearance of all detectors installed in the premises makes it difficult for an intruder to identify the specific model used in the system because all of them look the same.

• compliance with EN 50131 Grade 3
• configuring operating parameters: buttons and keyfob
• end-of-line resistors - 1.1 kΩ
• end-of-line resistors - 4.7 kΩ, 5.6 kΩ
• plug-in terminal block
• electronics board protecting cover
• number of available LED indicator colors: 7
• active IR anti-masking
• creep zone protection

Vendor Homepage

www.satel.pl/en/product/10162/SLIM-DUAL-PRO,Dual-tech-PIR+MW-motion-detector-with-IR-anti-masking-function

Category Code

MDE

Unit Box Height

0.07

Unit Box Length

0.18

Unit Box Width

0.05

Тип детектора

Motion

Технология

PIR

Зона обнаружения

20 m x 24 m

Alarm output

40 mA / 24 V DC

Максимальный ток

85 мА

Диапазон рабочих температур

-10°C...+55°C

Требования к электропитанию

12 V DC

Размер

62 x 137 x 42 mm

Количество в транспортной упаковке

1

Объем

0.00063 м3

Вес без упаковки

0.144 кг

Вес в упаковке

0.17 кг
