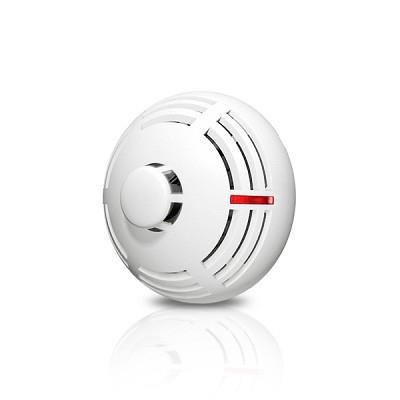

DETECTOR SMOKE FIRE TEMP./TSD-1 SATEL

The TSD-1 is a point detector designed to detect the early stages of a developing fire. For this purpose, it is equipped with a photoelectric sensor of visible smoke, as well as rate of rise temperature sensor. The unique design of the measuring chamber provides high sensitivity and omni-directionality, while a precise Hexamesh stainless steel filter protects the chamber from ingress of contamination and small insects. Detector configuration with DIP-switches and built-in parametric end of line resistors facilitate connection of the detector to virtually any control panel with a 12V power supply.
- unique Swirl chamber for increased smoke sensitivity
- EN54-7 compliant smoke detection
- EN54-5 compliant heat detection
- selectable operating mode (smoke, heat, multisensor)
- line type configuration (NO/NC/2EOL) with DIP switches
- precision stainless steel Hexamesh filter
- smoke chamber dirt build-up indicator
- easy installation with detachable base
- compatible with all 12V alarm panels

Description

The TSD-1 is a point detector designed to detect the early stages of a developing fire. For this purpose, it is equipped with a photoelectric sensor of visible smoke, as well as rate of rise temperature sensor. The unique design of the measuring chamber provides high sensitivity and omni-directionality, while a precise Hexamesh stainless steel filter protects the chamber from ingress of contamination and small insects. Detector configuration with DIP-switches and built-in parametric end of line resistors facilitate connection of the detector to virtually any control panel with a 12V power supply.
- unique Swirl chamber for increased smoke sensitivity
- EN54-7 compliant smoke detection
- EN54-5 compliant heat detection
- selectable operating mode (smoke, heat, multisensor)
- line type configuration (NO/NC/2EOL) with DIP switches
- precision stainless steel Hexamesh filter
- smoke chamber dirt build-up indicator
- easy installation with detachable base
- compatible with all 12V alarm panels

Vendor Homepage

http://www.satel.pl/en/produktid/466

Detector Type

Fire/Special

Operating temperature range

-10 C+55 C

Power supply requirements

12 V DC

Current drain

24 mA

Dimensions

108 x 61 mm

Units per Shipping Box

1

Shipping Box Depth

12 cm

Shipping Box Height

7 cm

Shipping Box Weight

0.2 kg

Shipping Box Width

12 cm

Unit Calculated Volume

0.001008 cubm

Product Net Weight

0.164 kg

Unit Calculated Weight

0.2 kg

Unit Box Width

0.12

Unit Box Length

0.12

Unit Box Height

0.07

Full Description Line

Detector Type Fire/Special|Operating temperature range -10 C+55 C|Power supply requirements 12 V DC|Current drain 24 mA|Dimensions 108 x 61 mm
