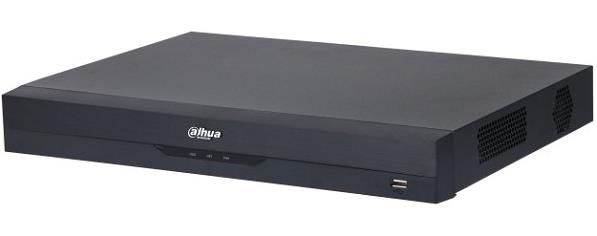

DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3 DAHUA

Pentabrid capability: Each channel supports up to 5MP: HDCVI, AHD, TVI, CVBS and 6MP IP Video input, Auto-detect

16-channel BNC interface

HDCVI/AHD/HD-TVI recording: 5MP, 4MP, 1080P@25/30 fps, 720P@50/60 fps, 720P@25/30 fps.

Record: 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30 fps)

IP: 16+8 channels, each channel up to 6MP; Max 128Mbps Incoming Bandwidth

AI Coding/H.265+/H.265/H.264+/H.264 video compression

G.711A, G.711U, PCM audio compression,

2x SATA interfaces up to 32 TB total storage

VGA/HDMI up to 3840×2160 output

RJ-45 1GB, 2x USB ports, RS485

No front panel control, 1/1 Audio I/O, no Alarm I/O

Full size 1U case, mouse included

ONVIF 16.12, CGI Conformant, Coax audio, IoT & POS support

Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Up to 2 channels video stream ( analog channel ) Perimeter Protection

Up to 16 channels video stream ( analog channel ) SMD Plus

Up to 2 channels video stream (analog channel ) human face recognition

IoT & POS functionalities

Free IP monitoring software available

Description

Pentabrid capability: Each channel supports up to 5MP: HDCVI, AHD, TVI, CVBS and 6MP IP Video input, Auto-detect

16-channel BNC interface

HDCVI/AHD/HD-TVI recording: 5MP, 4MP, 1080P@25/30 fps, 720P@50/60 fps, 720P@25/30 fps.

Record: 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30 fps)

IP: 16+8 channels, each channel up to 6MP; Max 128Mbps Incoming Bandwidth

AI Coding/H.265+/H.265/H.264+/H.264 video compression

G.711A, G.711U, PCM audio compression,

2x SATA interfaces up to 32 TB total storage

VGA/HDMI up to 3840×2160 output

RJ-45 1GB, 2x USB ports, RS485

No front panel control, 1/1 Audio I/O, no Alarm I/O

Full size 1U case, mouse included

ONVIF 16.12, CGI Conformant, Coax audio, IoT & POS support

Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Up to 2 channels video stream ( analog channel ) Perimeter Protection

Up to 16 channels video stream ( analog channel ) SMD Plus

Up to 2 channels video stream (analog channel ) human face recognition

IoT & POS functionalities

Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Recorders/Lite-AI-Series/I3-Series/5M-N/1080P-Series/XVR5216AN-I3

Category Code

STD

Unit Box Height

0.36

Unit Box Length

0.435

Unit Box Width

0.14

Наличие SATA

Да

Наличие USB

Да

Аудио вход

1

Аудио выход

1

Тип видеорегистратора

16 Channel

Совместимость с камерами

AHD 5MP/Analog/HDCVI 1080P/HDCVI 4MP/HDCVI 720P/HD-TVI/TurboHD 5MP/IP

Требования к электропитанию

DC12V, 4A

Размер

375.0 mm × 289.0 mm × 53.0 mm

Количество в транспортной упаковке

1

Объем

0.02192 м3

Вес без упаковки

1.56 кг

Вес в упаковке

2.9 кг
