Graphics Card|MSI|NVIDIA GeForce RTX 5070|12 GB|GDDR7|192 bit|PCIE 5.0 16x|Dual Slot Fansink|1xHDMI|3xDisplayPort|RTX507012GVENTUS2XOC

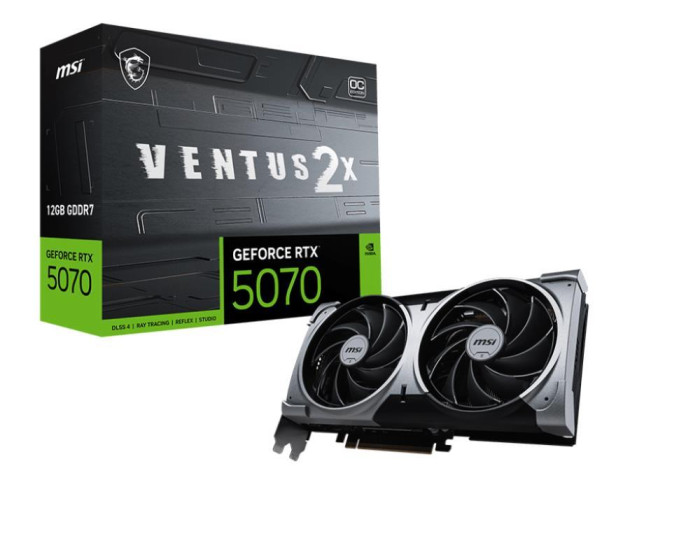

GeForce RTX™ 5070 12G VENTUS 2X OC - Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clock: - Extreme Performance: 2557 MHz (MSI Center)
- Boost: 2542 MHz

- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Description

GeForce RTX™ 5070 12G VENTUS 2X OC - Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clock: - Extreme Performance: 2557 MHz (MSI Center)
- Boost: 2542 MHz

- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Vendor Homepage

www.msi.com/Graphics-Card/GeForce-RTX-5070-12G-VENTUS-2X-OC

Model

GeForce RTX™ 5070 12G VENTUS 2X OC

Chipset

NVIDIA GeForce RTX 5070

Graphics memory size

12 GB

Graphics memory type

GDDR7

Memory bus

192 bit

Graphics connector

PCIE 5.0 16x

Memory CLK

28 Gbps

GPU boost clock

2542 MHz

CUDA Cores

6144

Max resolution

7680x4320

Graphic card features

Gaming/HDCP/Overclock Edition

Cooling system

Dual Slot Fansink

DisplayPort

3

HDMI

1

Power consumption

250 Watts

Power connectors

16 pin

Card's length

200 to 240 mm

Dimensions

236 x 126 x 50 mm

Units per Shipping Box

1

Unit Calculated Volume

0.005229 cubm

Product Net Weight

0.774 kg

Unit Calculated Weight

1.149 kg

Unit Box Width

0.24

Unit Box Length

0.31

Unit Box Height

0.085

Full Description Line

NVIDIA GeForce RTX 5070|Graphics memory size 12 GB|GDDR7|192 bit|PCIE 5.0 16x|Memory CLK 28 Gbps|GPU boost clock 2542 MHz|7680x4320|Cooling Dual Slot Fansink|1xHDMI|3xDisplayPort

Category Code

VGP
