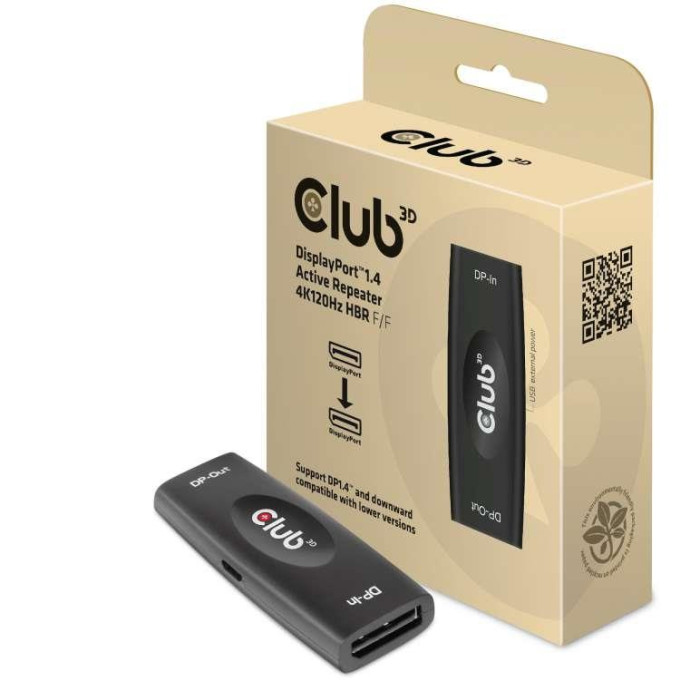

I/O ADAPTER DP TO DP/F/F CAC-1007 CLUB3D

DisplayPort 1.4 Active Repeater 4K120Hz HBR3 F/F.

The Club 3D CAC-1007 is a DisplayPort™ 1.4 active repeater, which provides a convenient method for users to extend DP™ signal from host PC to monitor or projector up to 20 meters/65.6 ft (10 meters/32.8 ft in and 10 meters/32.8 ft out) at max 4K120Hz resolution, for 28AWG or above cable.

The Adapter is powered thru an Micro USB to USB Type A cable(provided with the product).
• Support DP1.4™ and downward compatible with lower versions
• Transmission speed 1.62 Gbps / 2.7 Gbps / 5.4Gbps / 8.1 Gbps
• Support DisplayPort™ 1.4 HBR3 with max video resolution 4K@120Hz.
• Extending Distance: max 20m/65.6ft (10m/32.8ft input, 10m/32.8ft output) for 28AWG or above cable,
• Support cascading function up to 3 levels

Description

DisplayPort 1.4 Active Repeater 4K120Hz HBR3 F/F.

The Club 3D CAC-1007 is a DisplayPort™ 1.4 active repeater, which provides a convenient method for users to extend DP™ signal from host PC to monitor or projector up to 20 meters/65.6 ft (10 meters/32.8 ft in and 10 meters/32.8 ft out) at max 4K120Hz resolution, for 28AWG or above cable.

The Adapter is powered thru an Micro USB to USB Type A cable(provided with the product).
• Support DP1.4™ and downward compatible with lower versions
• Transmission speed 1.62 Gbps / 2.7 Gbps / 5.4Gbps / 8.1 Gbps
• Support DisplayPort™ 1.4 HBR3 with max video resolution 4K@120Hz.
• Extending Distance: max 20m/65.6ft (10m/32.8ft input, 10m/32.8ft output) for 28AWG or above cable,
• Support cascading function up to 3 levels

Vendor Homepage

www.club-3d.com/en/detail/2500/displayport_1.4_active_repeater_4k120hz_hbr3_f-f/

Category Code

IOC

Unit Box Height

0.135

Unit Box Length

0.1

Unit Box Width

0.035

Выход DisplayPort

2

Модель

CAC-1007

Тип продукта

Adapter

Количество в палете

0

Количество в транспортной упаковке

1

Объем

0.0004725 м3

Вес без упаковки

0.045 кг

Вес в упаковке

0.07 кг
