The T Series inverter range is aimed at 3-phase domestic and small-scale commercial installations, offering unrivalled performance and versatility for increased yield potential and longer generation windows. The 3-phase T Series inverter options range from 3kW to 25kW.
Description

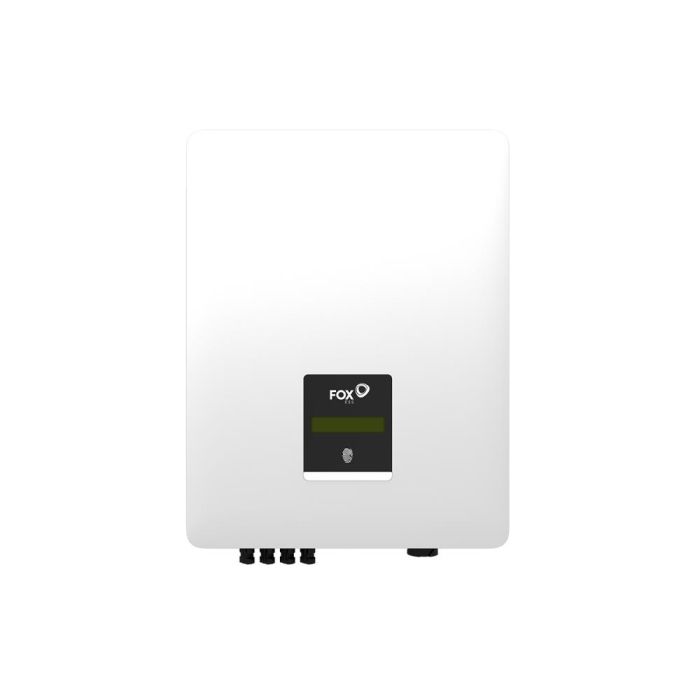

T SERIES (G3) 3-PHASE INVERTERS.
The T Series inverter range is aimed at 3-phase domestic and small-scale commercial installations, offering unrivalled performance and versatility for increased yield potential and longer generation windows. The 3-phase T Series inverter options range from 3kW to 25kW.
Vendor Homepage
www.fox-ess.com/three-phase-grid-tie-inverters/
Model
T3-G3
Phase
3phase
Rated output power
3000W
AC output voltage
400V/230VAC
Max output current
4.8 (per phase)
Number of MPP trackers
2
Maximum DC input voltage
1100
PV operating voltage range
140-1000
Maximum DC input current
14
Monitoring module
WiFi, 4G (Optional)
IP Rating
IP65
Operating temperature range
-25 to +60 °C
Included Accessories
WiFi datalogger
Dimensions
370 x 480 x 183.5mm
Units per Shipping Box
1
Shipping Box Depth
59.5 cm
Shipping Box Height
31.5 cm
Shipping Box Weight
21.4 kg
Shipping Box Width
45.5 cm
Unit Calculated Volume
0.08528 cubm
Product Net Weight
17 kg
Unit Calculated Weight
21.4 kg
Unit Box Width
0.455
Unit Box Length
0.595
Unit Box Height
0.315
Full Description Line
3phase|Rated Output 3000W|AC output voltage 400V/230VAC|Max output current 4.8 (per phase)|Number of MPP trackers 2|Maximum DC input voltage 1100|Maximum DC input current 14|IP Rating IP65|Operating temperature range -25 to +60 °C|Dimensions 370 x 480 x 183.5mm|Weight 17 kg
