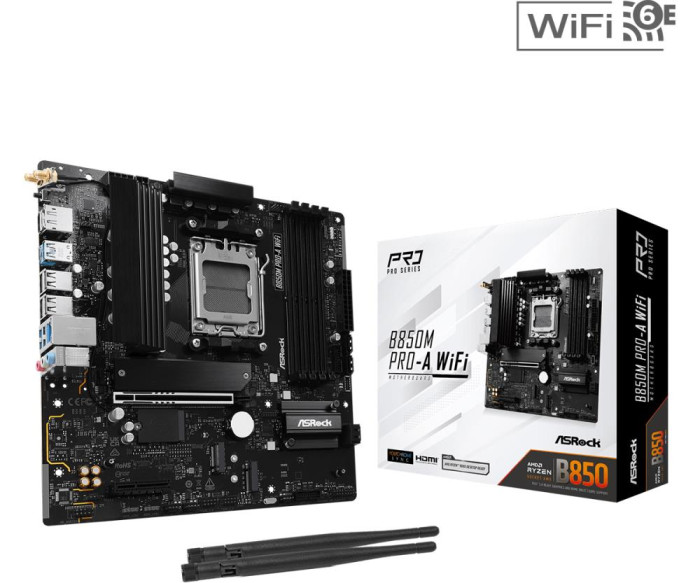

Mainboard|ASROCK|1xPCI-Express 4.0 4x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|B850MPRO-AWIFI

Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC

4 x DDR5 DIMMs

Supports Dual Channel, up to 8000+ (OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x4

Graphics Output Options: 1 HDMI, 1 DisplayPort

Realtek ALC897 7.1 CH HD Audio Codec

1 Blazing M.2 (PCIe Gen5x4)

2 Hyper M.2 (PCIe Gen4x4)

4 SATA3

1 USB 3.2 Gen2 Type-C (Rear)

1 USB 3.2 Gen2 Type-A (Rear)

1 USB 3.2 Gen1 Type-C (Front)

6 USB 3.2 Gen1 (2 Rear, 4 Front)

8 USB 2.0 (4 Rear, 4 Front)

Realtek 2.5G LAN

802.11axe WiFi 6E +Bluetooth

Supports BIOS Flashback

Description

Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC

4 x DDR5 DIMMs

Supports Dual Channel, up to 8000+ (OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x4

Graphics Output Options: 1 HDMI, 1 DisplayPort

Realtek ALC897 7.1 CH HD Audio Codec

1 Blazing M.2 (PCIe Gen5x4)

2 Hyper M.2 (PCIe Gen4x4)

4 SATA3

1 USB 3.2 Gen2 Type-C (Rear)

1 USB 3.2 Gen2 Type-A (Rear)

1 USB 3.2 Gen1 Type-C (Front)

6 USB 3.2 Gen1 (2 Rear, 4 Front)

8 USB 2.0 (4 Rear, 4 Front)

Realtek 2.5G LAN

802.11axe WiFi 6E +Bluetooth

Supports BIOS Flashback

Category Code

MBA

Unit Box Height

0.06

Unit Box Length

0.3

Unit Box Width

0.265

M.2

1

PCI-Express 4.0 4x

1

PCI-Express 5.0 16x

1

RJ45

1

USB 3.2

Да

USB тип C

1

Аудио вход

1

Аудио выход

1

Выход DisplayPort

1

Выход HDMI

1

Микрофон

1

Наличие USB 2.0

Да

Bluetooth

Да

USB-C

Да

Наличие SATA

Да

Наличие SATA 3.0

Да

Наличие WiFi

Да

Модель

B850M Pro-A WiFi

Форм-фактор

Micro-ATX

Встроенная видео карта

Depending on CPU

Встроенная звуковая карта

Realtek ALC897

Встроенный сетевой адаптер

2.5 Gigabit

RAID

SATA 0, 1, 10

TPM

Header

Количество в транспортной упаковке

10

Объем

0.005357 м3

Вес без упаковки

0.9 кг

Вес в упаковке

1.38 кг
