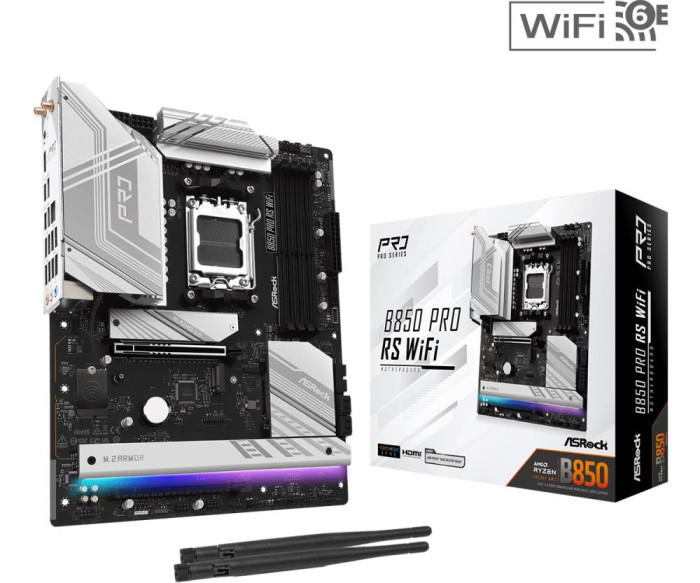

Mainboard|ASROCK|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xAudio-In|1xAudio-Out|1xMicrophone|6xUSB 2.0|4xUSB 3.2|2xUSB-C|1xRJ45|B850PRORSWIFI

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC

4 x DDR5 DIMMs

Supports Dual Channel, up to 8000+ (OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x16

Graphics Output Options: 1 HDMI, 1 USB Type-C (DP-alt)

Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio

1 Blazing M.2 (PCIe Gen5x4)

2 Hyper M.2 (PCIe Gen4x4)

1 Ultra M.2 (PCIe Gen3x4)

4 SATA3

1 USB 3.2 Gen2x2 Type-C (Front)

1 USB 3.2 Gen2 Type-C (Rear)

1 USB 3.2 Gen1 Type-C (Rear)

8 USB 3.2 Gen1 (4 Rear, 4 Front)

10 USB 2.0 (6 Rear, 4 Front)

Realtek 2.5G LAN

802.11axe WiFi 6E +Bluetooth

Supports M.2 Bottom Heatsink,

BIOS Flashback

Description

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC

4 x DDR5 DIMMs

Supports Dual Channel, up to 8000+ (OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x16

Graphics Output Options: 1 HDMI, 1 USB Type-C (DP-alt)

Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio

1 Blazing M.2 (PCIe Gen5x4)

2 Hyper M.2 (PCIe Gen4x4)

1 Ultra M.2 (PCIe Gen3x4)

4 SATA3

1 USB 3.2 Gen2x2 Type-C (Front)

1 USB 3.2 Gen2 Type-C (Rear)

1 USB 3.2 Gen1 Type-C (Rear)

8 USB 3.2 Gen1 (4 Rear, 4 Front)

10 USB 2.0 (6 Rear, 4 Front)

Realtek 2.5G LAN

802.11axe WiFi 6E +Bluetooth

Supports M.2 Bottom Heatsink,

BIOS Flashback

Vendor Homepage

www.asrock.com/MB/AMD/B850%20Pro%20RS%20WiFi/index.asp

Category Code

MBA

Unit Box Height

0.075

Unit Box Length

0.35

Unit Box Width

0.28

M.2

1

PCI-Express 4.0 16x

1

PCI-Express 5.0 16x

1

RJ45

1

USB 3.2

Да

USB тип C

2

Аудио вход

1

Аудио выход

1

Выход HDMI

1

Микрофон

1

Наличие USB 2.0

Да

Bluetooth

Да

USB-C

Да

Наличие SATA

Да

Наличие SATA 3.0

Да

Наличие WiFi

Да

Модель

B850 Pro RS WiFi

Чипсет

AMD B850

Socket

SAM5

Форм-фактор

ATX

Тип оперативной памяти

DDR5

Частота работы оперативной памяти

8000 МГц

Количество слотов памяти

4 слота

Встроенная видео карта

Depending on CPU

Встроенная звуковая карта

Realtek ALC897

Встроенный сетевой адаптер

2.5 Gigabit

RAID

SATA 0, 1, 10

TPM

Header

Количество в транспортной упаковке

5

Объем

0.008784 м3

Вес без упаковки

1.4 кг

Вес в упаковке

2.19 кг
