Mainboard|ASROCK|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|5xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|B850STEELLEGENDWIFI

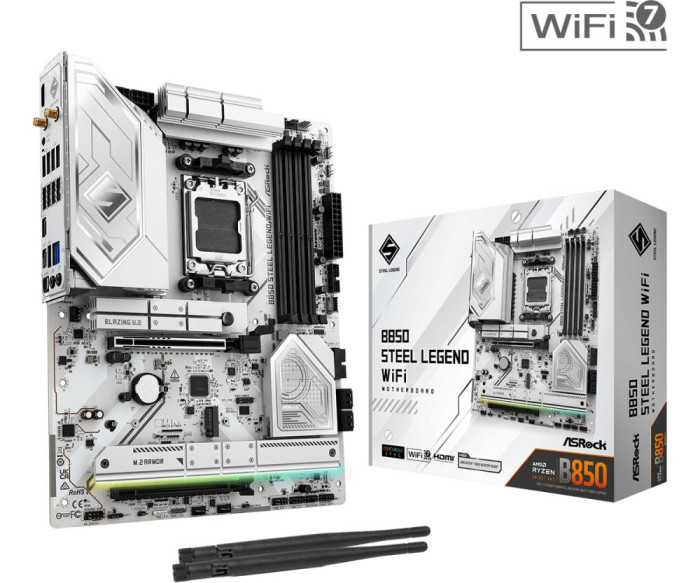

B850 Steel Legend WiFi

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
• 4 x DDR5 DIMMs, Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI
• Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4), 3 Hyper M.2 (PCIe Gen4x4), 4 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front), 4 USB 3.2 Gen2 (2 Rear, 2 Rear Type-C), 7 USB 3.2 Gen1 (3 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
• Realtek 2.5G LAN
• 802.11be Wi-Fi 7 + Bluetooth
• Supports Lite Release Design, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink

Description

B850 Steel Legend WiFi

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
• 4 x DDR5 DIMMs, Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI
• Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4), 3 Hyper M.2 (PCIe Gen4x4), 4 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front), 4 USB 3.2 Gen2 (2 Rear, 2 Rear Type-C), 7 USB 3.2 Gen1 (3 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
• Realtek 2.5G LAN
• 802.11be Wi-Fi 7 + Bluetooth
• Supports Lite Release Design, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink

Vendor Homepage

www.asrock.com/mb/AMD/B850%20Steel%20Legend%20WiFi/index.asp

Category Code

MBA

Unit Box Height

0.08

Unit Box Length

0.35

Unit Box Width

0.28

M.2

1

PCI-Express 4.0 16x

1

PCI-Express 5.0 16x

1

RJ45

1

USB 3.2

Да

USB тип C

2

Аудио вход

1

Аудио выход

1

Выход HDMI

1

Наличие USB 2.0

Да

Оптический разьем SP-DIF

1

Bluetooth

Да

USB-C

Да

Наличие SATA

Да

Наличие WiFi

Да

Модель

B850 STEEL LEGEND WIFI

Чипсет

AMD B850

Socket

SAM5

Форм-фактор

ATX

Тип оперативной памяти

DDR5

Частота работы оперативной памяти

8000 МГц

Количество слотов памяти

4 слота

Встроенная видео карта

Depending on CPU

Встроенная звуковая карта

Realtek ALC4082

Встроенный сетевой адаптер

2.5 Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 10

TPM

Header

Аксессуары в комплекте

- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 1 x Thermistor Cable

Количество в транспортной упаковке

5

Объем

0.008784 м3

Вес без упаковки

1 кг

Вес в упаковке

2.29 кг
