Mainboard|ASROCK|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xAudio-In|1xAudio-Out|8xUSB 2.0|9xUSB 3.2|3xUSB-C|1xOptical S/PDIF|1xRJ45|B850RIPTIDEWIFI

PHANTOM GAMING

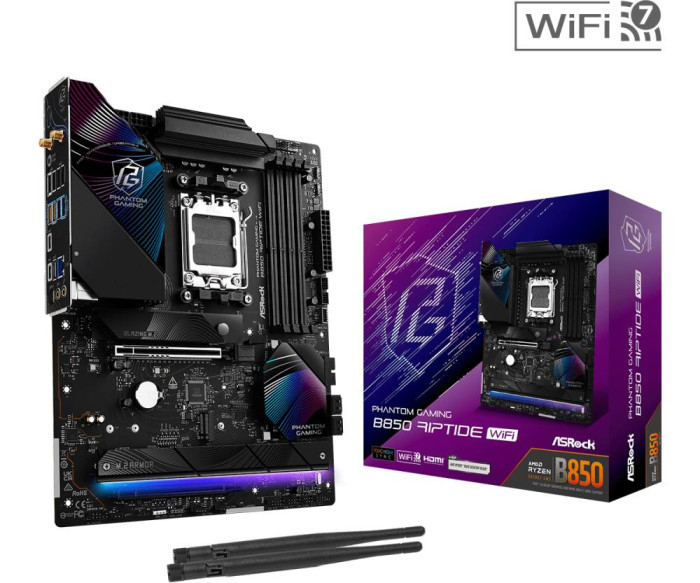

B850 Riptide WiFi

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.


PRODUCT BRIEF:

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI
• Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4)
• 3 Hyper M.2 (PCIe Gen4x4)
• 4 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front)
• 4 USB 3.2 Gen2 (2 Rear, 2 Rear Type-C)
• 7 USB 3.2 Gen1 (3 Rear, 4 Front)
• 8 USB 2.0 (4 Rear, 4 Front)
• Killer 2.5G LAN
• 802.11be Wi-Fi 7 + Bluetooth
• Supports Lite Release Design,
• Toolless Multi-Layer M.2 Heatsink,
• M.2 Bottom Heatsink

Description

PHANTOM GAMING
B850 Riptide WiFi

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.


PRODUCT BRIEF:

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI
• Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4)
• 3 Hyper M.2 (PCIe Gen4x4)
• 4 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front)
• 4 USB 3.2 Gen2 (2 Rear, 2 Rear Type-C)
• 7 USB 3.2 Gen1 (3 Rear, 4 Front)
• 8 USB 2.0 (4 Rear, 4 Front)
• Killer 2.5G LAN
• 802.11be Wi-Fi 7 + Bluetooth
• Supports Lite Release Design,
• Toolless Multi-Layer M.2 Heatsink,
• M.2 Bottom Heatsink

Vendor Homepage

pg.asrock.com/mb/AMD/B850%20Riptide%20WiFi/index.asp

Category Code

MBA

Unit Box Height

0.075

Unit Box Length

0.35

Unit Box Width

0.28

M.2

1

PCI-Express 4.0 16x

1

PCI-Express 5.0 16x

1

RJ45

1

USB 3.2

9

USB тип C

3

Аудио вход

1

Аудио выход

1

Выход HDMI

1

Наличие USB 2.0

8

Оптический разьем SP-DIF

1

Bluetooth

Да

Наличие SATA

Да

Наличие WiFi

Да

Модель

B850 Riptide WiFi

Чипсет

AMD B850

Socket

SAM5

Форм-фактор

ATX

Тип оперативной памяти

DDR5

Частота работы оперативной памяти

8000 МГц

Количество слотов памяти

4 слота

Встроенная видео карта

Depending on CPU

Встроенная звуковая карта

Да

Встроенный сетевой адаптер

2.5 Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 10

TPM

Header

Аксессуары в комплекте

- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 1 x ARGB Splitter Cable- 1 x Thermistor Cable

Количество в транспортной упаковке

5

Объем

0.008784 м3

Вес без упаковки

1 кг

Вес в упаковке

2.32 кг
