Mainboard|ASROCK|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xUSB-C|1xOptical S/PDIF|1xRJ45|B850LIVEMIXERWIFI

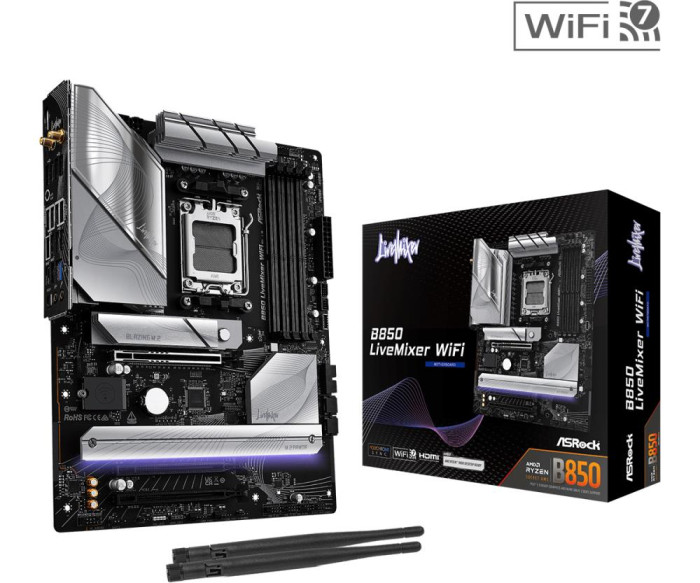

B850 LiveMixer WiFi

LiveMixer series is crafted with the needs of modern content creators in mind, offering excellent connectivity for streaming and multiple auxiliary devices. Its reliable performance ensures seamless content creation and efficient time management.


B850 LiveMixer WiFi

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC
• 4 x DDR5 DIMMs, Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 5.0 x16, 2 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI, 1 DisplayPort
• Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4), 2 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 12 USB 2.0 (8 Rear, 4 Front)
• Realtek 2.5G LAN
• 802.11be WiFi 7 +Bluetooth
• Supports M.2 Bottom Heatsink,
• BIOS Flashback

Description

B850 LiveMixer WiFi

LiveMixer series is crafted with the needs of modern content creators in mind, offering excellent connectivity for streaming and multiple auxiliary devices. Its reliable performance ensures seamless content creation and efficient time management.


B850 LiveMixer WiFi

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC
• 4 x DDR5 DIMMs, Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 5.0 x16, 2 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI, 1 DisplayPort
• Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4), 2 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 12 USB 2.0 (8 Rear, 4 Front)
• Realtek 2.5G LAN
• 802.11be WiFi 7 +Bluetooth
• Supports M.2 Bottom Heatsink,
• BIOS Flashback

Vendor Homepage

www.asrock.com/mb/AMD/B850%20LiveMixer%20WiFi/index.asp

Category Code

MBA

Unit Box Height

0.075

Unit Box Length

0.35

Unit Box Width

0.28

M.2

1

PCI-Express 4.0 16x

2

PCI-Express 5.0 16x

1

RJ45

1

USB тип C

1

Аудио вход

1

Аудио выход

1

Выход DisplayPort

1

Выход HDMI

1

Наличие USB 2.0

2

Оптический разьем SP-DIF

1

Модель

B850 LiveMixer WiFi

Чипсет

AMD B850

Socket

SAM5

Форм-фактор

ATX

Тип оперативной памяти

DDR5

Частота работы оперативной памяти

8000 МГц

Количество слотов памяти

4 слота

Встроенная видео карта

Depending on CPU

Встроенная звуковая карта

Realtek ALC1200

Встроенный сетевой адаптер

2.5 Gigabit

RAID

SATA 0, 1; NVMe 0, 1, 10

TPM

Header

Аксессуары в комплекте

- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 1 x Thermistor Cable

Количество в транспортной упаковке

5

Объем

0.008784 м3

Вес без упаковки

1 кг

Вес в упаковке

2.28 кг
