Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|1xAV-In|1xAV-out|1xMicrophone|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|B760M-HDV/M.2

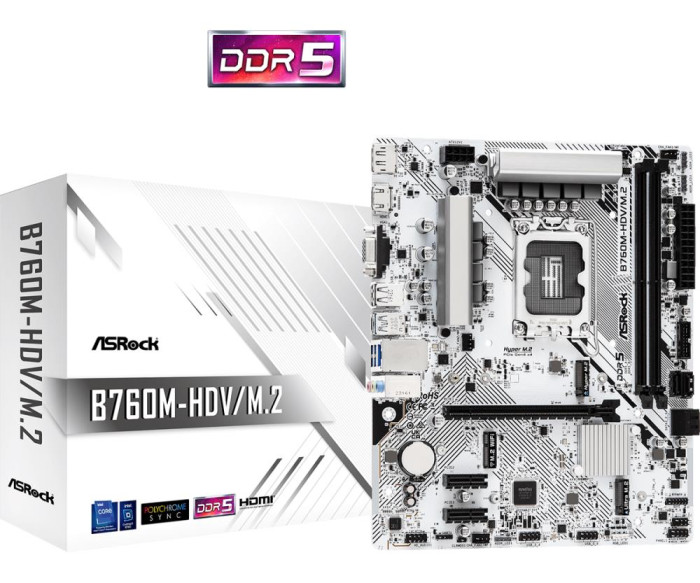

B760M-HDV/M.2

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• 7+1+1 Power Phase
• Supports DDR5 7200MHz (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),
• 1 Ultra M.2 (PCIe Gen3 x4)
• 1 USB 3.2 Gen1 Type-C (Rear),
• 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
• 6 USB 2.0 (2 Rear, 4 Front)
• Dragon 2.5G LAN
• Supports ASRock Auto Driver Installer

Description

B760M-HDV/M.2

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• 7+1+1 Power Phase
• Supports DDR5 7200MHz (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),
• 1 Ultra M.2 (PCIe Gen3 x4)
• 1 USB 3.2 Gen1 Type-C (Rear),
• 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
• 6 USB 2.0 (2 Rear, 4 Front)
• Dragon 2.5G LAN
• Supports ASRock Auto Driver Installer

Vendor Homepage

www.asrock.com/mb/Intel/B760M-HDVM.2/index.asp

Category Code

MBI

CnCode

84733020

Unit Box Height

0.06

Unit Box Length

0.277

Unit Box Width

0.24

M.2

1

PCI-Express 3.0 1x

2

PCI-Express 4.0 16x

1

15pin D-sub

1

AV-In

1

AV-out

1

DisplayPort

1

HDMI

1

Microphone

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

1

SATA 3.0

Yes

Model

B760M-HDV/M.2

Chipset

Intel B760 Express

Socket

LGA1700

Form Factor

Micro-ATX

Memory type

DDR5

Frequency speed

7200 MHz

Memory slots

2

Integrated video

Depending on CPU

Integrated LAN

2.5 Gigabit

Integrated audio

Realtek ALC897

RAID

SATA 0, 1, 5, 10

TPM

Yes

Included Accessories

1 x User Manual;
1 x I/O Shield;
2 x SATA Data Cables;
3 x Screws for M.2 Sockets

Units per Shipping Box

20

Unit Calculated Volume

0.004511 cubm

Product Net Weight

0.5 kg

Unit Calculated Weight

0.927 kg
