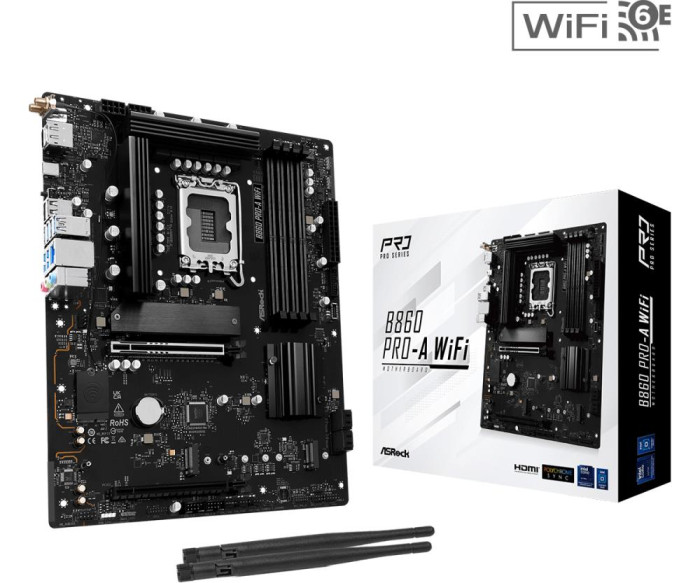

Mainboard|ASROCK|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|2xUSB 2.0|6xUSB 3.2|1xUSB-C|1xRJ45|B860PRO-AWIFI

Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.

Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)

10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA

4 x DDR5 DIMMs

Supports Dual Channel, up to 8666+ (OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x16

Graphics Output Options: 1 HDMI, 1 DisplayPort

Realtek ALC897 7.1 CH HD Audio Codec

4 SATA3

1 Blazing M.2 (PCIe Gen5x4)

2 Hyper M.2 (PCIe Gen4x4)

1 USB 3.2 Gen2x2 Type-C (Rear)

1 USB 3.2 Gen1 Type-C (Front)

8 USB 3.2 Gen1 (6 Rear, 2 Front)

6 USB 2.0 (2 Rear, 4 Front)

Realtek 2.5G LAN

802.11axe WiFi 6E + Bluetooth

Supports BIOS Flashback

Description

Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.

Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)

10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA

4 x DDR5 DIMMs

Supports Dual Channel, up to 8666+ (OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x16

Graphics Output Options: 1 HDMI, 1 DisplayPort

Realtek ALC897 7.1 CH HD Audio Codec

4 SATA3

1 Blazing M.2 (PCIe Gen5x4)

2 Hyper M.2 (PCIe Gen4x4)

1 USB 3.2 Gen2x2 Type-C (Rear)

1 USB 3.2 Gen1 Type-C (Front)

8 USB 3.2 Gen1 (6 Rear, 2 Front)

6 USB 2.0 (2 Rear, 4 Front)

Realtek 2.5G LAN

802.11axe WiFi 6E + Bluetooth

Supports BIOS Flashback

Vendor Homepage

www.asrock.com/MB/Intel/B860%20Pro-A%20WiFi/index.asp

Category Code

MBI

Unit Box Height

0.075

Unit Box Length

0.355

Unit Box Width

0.28

M.2

1

PCI-Express 4.0 16x

1

PCI-Express 5.0 16x

1

RJ45

1

USB 3.2

Да

USB тип C

1

Аудио вход

1

Аудио выход

1

Выход DisplayPort

1

Выход HDMI

1

Микрофон

1

Наличие USB 2.0

Да

Bluetooth

Да

USB-C

Да

Наличие SATA

Да

Наличие SATA 3.0

Да

Наличие WiFi

Да

Модель

B860 Pro-A WiFi

Чипсет

Intel B860 Express

Socket

LGA1851

Форм-фактор

ATX

Тип оперативной памяти

DDR5

Частота работы оперативной памяти

8666 МГц

Количество слотов памяти

4 слота

Встроенная видео карта

Depending on CPU

Встроенный сетевой адаптер

2.5 Gigabit

Встроенная звуковая карта

Realtek ALC897

RAID

SATA 0, 1, 5, 10

TPM

Header

Количество в транспортной упаковке

5

Объем

0.008784 м3

Вес без упаковки

1.4 кг

Вес в упаковке

1.82 кг
