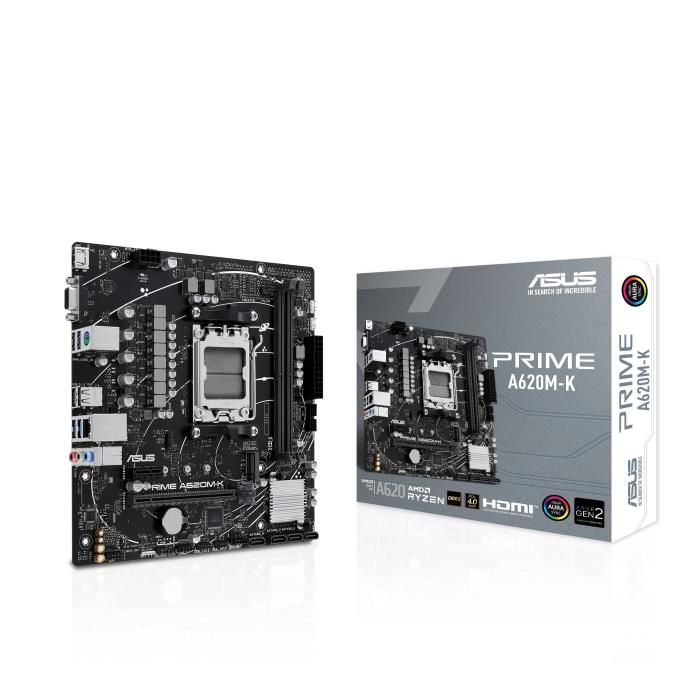

Mainboard|ASUS|AMD A620|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PRIMEA620M-K

AMD A620 micro-ATX motherboard, DDR5, PCIe 4.0 Graphics card and PCIe 4.0 M.2 support, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync - AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
- Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
- Comprehensive Cooling: PCH heatsink and Fan Xpert
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Description

AMD A620 micro-ATX motherboard, DDR5, PCIe 4.0 Graphics card and PCIe 4.0 M.2 support, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync - AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
- Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
- Comprehensive Cooling: PCH heatsink and Fan Xpert
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Vendor Homepage

www.asus.com/motherboards-components/motherboards/prime/prime-a620m-k/techspec/

Model

PRIME A620M-K

Chipset

AMD A620

Form Factor

Micro-ATX

Memory type

DDR5

Frequency speed

4800/5000/5200/5400/5600/6000/6200/6400 MHz

Memory slots

2

M.2

1

PCI-Express 3.0 1x

1

PCI-Express 4.0 16x

1

15pin D-sub

1

Audio port

3

HDMI

1

PS/2

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

SATA

Yes

Integrated video

Depending on CPU

Integrated audio

Yes

Integrated LAN

Gigabit

RAID

SATA 0, 1, 10; PCIe 0, 1, 10

TPM

Header

Included Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
Documentation
1 x User guide

Units per Shipping Box

1

Shipping Box Depth

27 cm

Shipping Box Height

5 cm

Shipping Box Weight

0.959 kg

Shipping Box Width

26.5 cm

Unit Calculated Volume

0.003577 cubm

Product Net Weight

0.75 kg

Unit Calculated Weight

0.959 kg

CnCode

84733020

Unit Box Width

0.265

Unit Box Length

0.27

Unit Box Height

0.05

Full Description Line

AMD A620|Micro-ATX|DDR5|6400/6200/6000/5600/5400/5200/5000/4800 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10; PCIe 0, 1, 10|TPM Header
