Mainboard|ASUS|AMD B550|SAM4|MicroATX|Memory DDR4|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|6xUSB 3.2|1xPS/2|1xRJ45|PRIMEB550M-AWIFIII

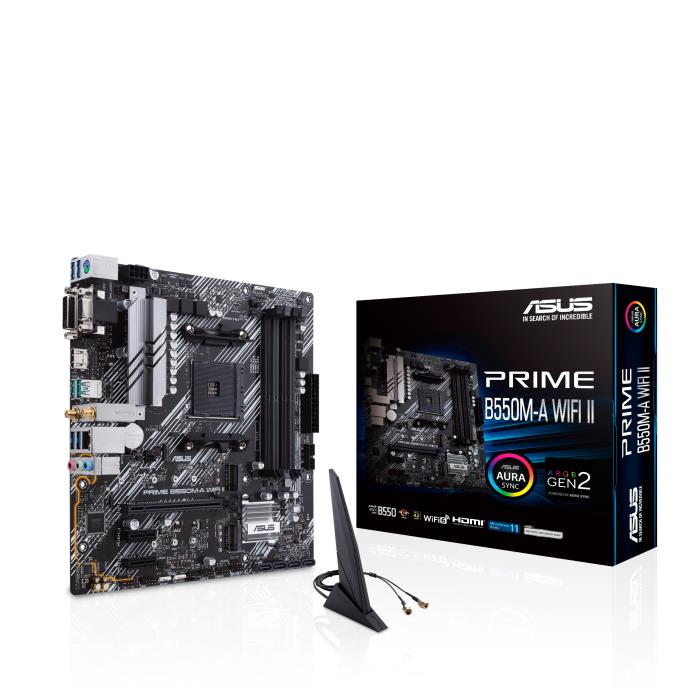

PRIME B550M-A WIFI II


AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, HDMI, DVI-D, D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB lighting support


AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ utility

Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support

Aura Sync RGB Lighting: Onboard addressable Gen 2 header and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware

Description

PRIME B550M-A WIFI II


AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, HDMI, DVI-D, D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB lighting support


AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ utility

Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support

Aura Sync RGB Lighting: Onboard addressable Gen 2 header and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware

Vendor Homepage

www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-B550M-A-WIFI-II/

Category Code

MBA

Unit Box Height

0.07

Unit Box Length

0.28

Unit Box Width

0.27

M.2

2

PCI-Express 3.0 1x

2

PCI-Express 4.0 16x

1

RJ45

1

USB 3.2

6

Аудио вход

2

Аудио выход

1

Выход DVI-D

1

Выход HDMI

1

Наличие PS/2

1

Разъем 15pin D-sub

1

Bluetooth

Да

Наличие SATA

Да

Наличие WiFi

Да

Чипсет

AMD B550

Socket

SAM4

Форм-фактор

Micro-ATX

Тип оперативной памяти

DDR4

Частота работы оперативной памяти

2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/3866/4000/4133/4200/4266/4333/4400/4466/4600/4800/4866 МГц

Количество слотов памяти

4 слота

Встроенная видео карта

Depending on CPU

Встроенная звуковая карта

Да

Встроенный сетевой адаптер

Gigabit

RAID

SATA 0, 1, 10

TPM

Header

Аксессуары в комплекте

2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 SSD screw package

Количество в транспортной упаковке

1

Объем

0.005292 м3

Вес без упаковки

0.7 кг

Вес в упаковке

1.18 кг
