Mainboard|ASUS|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|B650EMAXGAMINGWIFIW

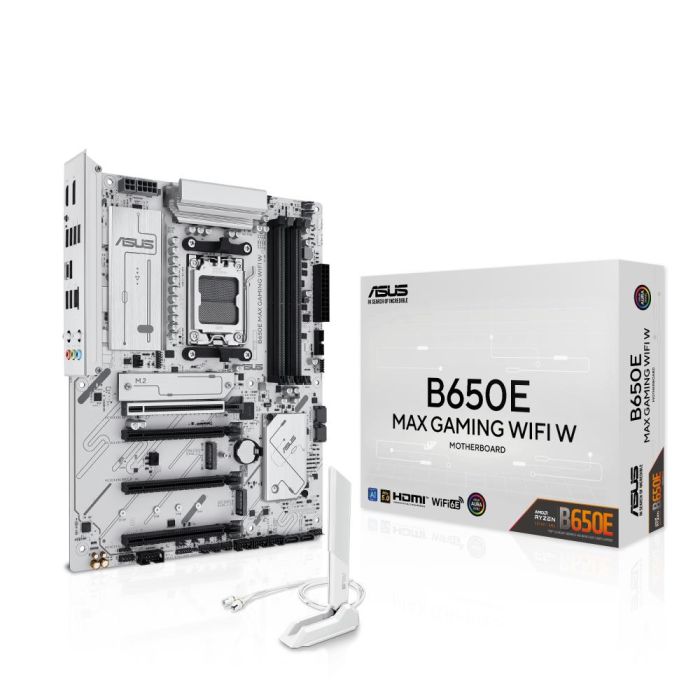

B650E MAX GAMING WIFI W

AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, three M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, rear USB 10Gbps Type-A & Type-C® support, BIOS FlashBack™, Aura Sync - AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A & Type-C® ports, and front USB 5Gbps Type-C® support
- Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- DIY Friendly Design: Pre-mounted I/O shield, BIOS?FlashBack™, Q-Antenna, Q-LED Core
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- CEC Tier II ready

Description

B650E MAX GAMING WIFI W

AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, three M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, rear USB 10Gbps Type-A & Type-C® support, BIOS FlashBack™, Aura Sync - AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A & Type-C® ports, and front USB 5Gbps Type-C® support
- Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- DIY Friendly Design: Pre-mounted I/O shield, BIOS?FlashBack™, Q-Antenna, Q-LED Core
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- CEC Tier II ready

Vendor Homepage

www.asus.com/motherboards-components/motherboards/others/b650e-max-gaming-wifi-w/

Model

B650E MAX GAMING WIFI W

Chipset

AMD B650

Socket

SAM5

Form Factor

ATX

Memory type

DDR5

Frequency speed

8000 MHz

Memory slots

4

M.2

3

PCI-Express 3.0 16x

2

PCI-Express 4.0 16x

1

PCI-Express 5.0 16x

1

Audio port

3

DisplayPort

1

HDMI

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

Yes

Bluetooth

Yes

SATA

Yes

WiFi

Yes

Integrated video

Depending on CPU

Integrated audio

Yes

Integrated LAN

2.5 Gigabit

RAID

SATA 0, 1, 5, 10

Included Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
3 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Units per Shipping Box

5

Shipping Box Depth

37 cm

Shipping Box Height

29.3 cm

Shipping Box Weight

9.1 kg

Shipping Box Width

37 cm

Unit Calculated Volume

0.008022 cubm

Product Net Weight

1.2 kg

Unit Calculated Weight

1.82 kg

CnCode

84733020

Unit Box Width

0.273

Unit Box Length

0.356

Unit Box Height

0.07

Full Description Line

AMD B650|SAM5|ATX|DDR5|8000 MHz|Memory slots 4|2xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10

Category Code

MBA
