Mainboard|ASUS|AMD B840|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|PRIMEB840M-AWIFI

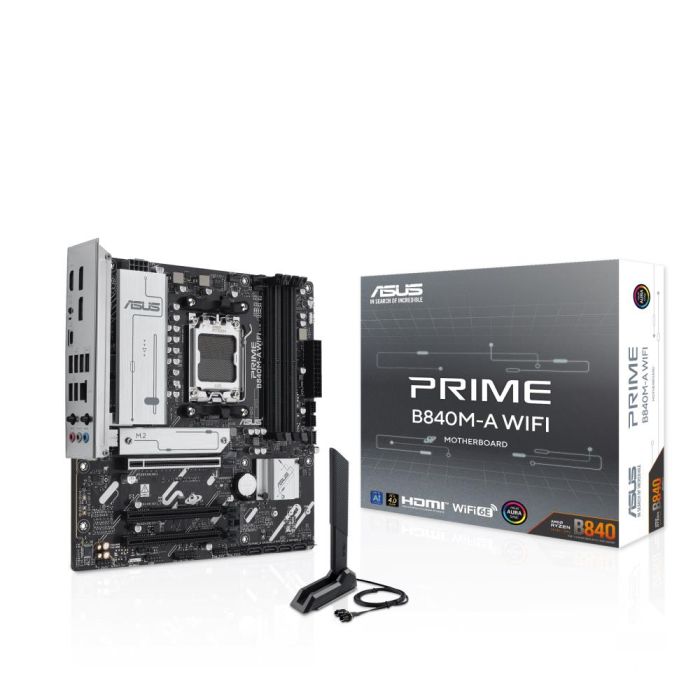

PRIME B840M-A WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Description

PRIME B840M-A WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Vendor Homepage

www.asus.com/motherboards-components/motherboards/prime/prime-b840m-a-wifi/

Model

PRIME B840M-A WIFI

Chipset

AMD B840

Socket

SAM5

Form Factor

Micro-ATX

Memory type

DDR5

Frequency speed

7600 MHz

Memory slots

4

M.2

3

PCI-Express 3.0 16x

2

PCI-Express 4.0 16x

1

Audio port

3

DisplayPort

2

HDMI

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

Yes

Bluetooth

Yes

SATA

Yes

WiFi

Yes

Integrated video

Depending on CPU

Integrated audio

Yes

Integrated LAN

2.5 Gigabit

RAID

SATA 0, 1, 5, 10

TPM

Header

Included Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Units per Shipping Box

10

Shipping Box Depth

57.1 cm

Shipping Box Height

29.8 cm

Shipping Box Weight

15.5 kg

Shipping Box Width

36.7 cm

Unit Calculated Volume

0.006245 cubm

Product Net Weight

0.7 kg

Unit Calculated Weight

1.55 kg

Unit Box Width

0.071

Unit Box Length

0.281

Unit Box Height

0.273

Full Description Line

AMD B840|SAM5|Micro-ATX|DDR5|7600 MHz|Memory slots 4|2xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10|TPM Header

Category Code

MBA
