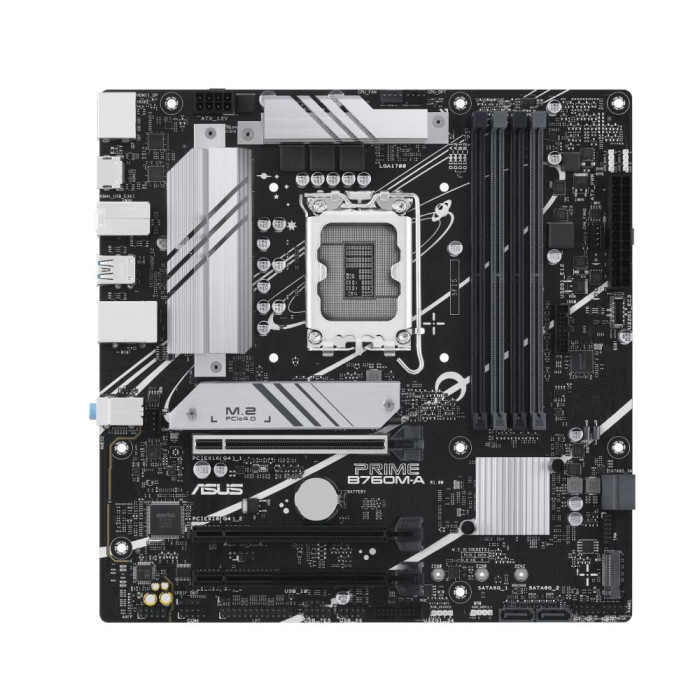

Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PRIMEB760M-A-CSM

Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
• ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection

Description

Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
• ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection

Vendor Homepage

www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-csm/

Category Code

MBI

CnCode

84733020

Unit Box Height

0.053

Unit Box Length

0.273

Unit Box Width

0.264

M.2

2

PCI-Express 4.0 16x

2

Audio port

3

DisplayPort

2

HDMI

1

PS/2

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

SATA

Yes

Model

PRIME B760M-A-CSM

Chipset

Intel B760 Express

Socket

LGA1700

Form Factor

Micro-ATX

Memory type

DDR5

Frequency speed

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000 MHz

Memory slots

4

Integrated video

Depending on CPU

Integrated LAN

2.5 Gigabit

Integrated audio

Yes

RAID

SATA 0, 1, 5, 10

Included Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x ACC Express Activation Key Card
1 x User guide

Units per Shipping Box

10

Unit Calculated Volume

0.004548 cubm

Product Net Weight

0.8 kg

Unit Calculated Weight

1.18 kg
