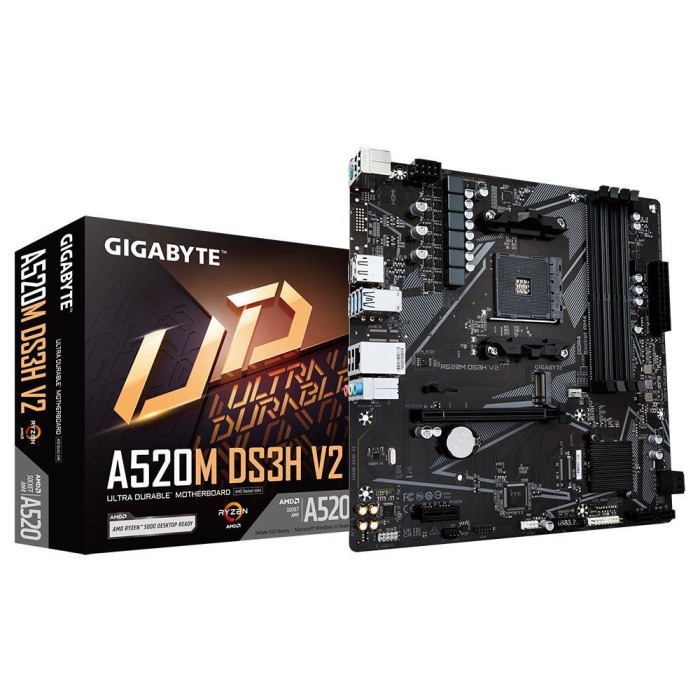

Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|A520MDS3HV2

AMD A520 Ultra Durable Motherboard with Digital VRM Solution, GbE LAN, Smart Fan 5 with FAN STOP

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• Ultra Durable™ PCIe 3.0 x16 Slot
• NVMe PCIe 3.0 M.2 Connectors
• High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
• GbE LAN with Bandwidth Management
• Rear DisplayPort and HDMI for Multi-display Support
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Anti-Sulfur Resistors Design

Description

AMD A520 Ultra Durable Motherboard with Digital VRM Solution, GbE LAN, Smart Fan 5 with FAN STOP

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• Ultra Durable™ PCIe 3.0 x16 Slot
• NVMe PCIe 3.0 M.2 Connectors
• High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
• GbE LAN with Bandwidth Management
• Rear DisplayPort and HDMI for Multi-display Support
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Anti-Sulfur Resistors Design

Vendor Homepage

www.gigabyte.com/Motherboard/A520M-DS3H-V2-rev-10#kf

Category Code

MBA

Unit Box Height

0.055

Unit Box Length

0.27

Unit Box Width

0.265

M.2

1

PCI-Express 3.0 16x

1

PCI-Express 3.0 1x

1

RJ45

1

USB 3.2

Да

Аудио порт

3

Выход DisplayPort

1

Выход HDMI

1

Наличие PS/2

1

Наличие USB 2.0

Да

Наличие SATA

Да

Модель

A520M DS3H V2

Чипсет

AMD A520

Socket

SAM4

Форм-фактор

Micro-ATX

Тип оперативной памяти

DDR4

Частота работы оперативной памяти

2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 МГц

Количество слотов памяти

4 слота

Встроенная видео карта

Depending on CPU

Встроенная звуковая карта

Да

Встроенный сетевой адаптер

Да

RAID

SATA 0, 1, 10

TPM

Header

Количество в транспортной упаковке

10

Объем

0.004711 м3

Вес без упаковки

0.7 кг

Вес в упаковке

0.89 кг
