Mainboard|GIGABYTE|AMD B550|SAM4|ATX|Memory DDR4|Memory slots 4|1xPCI-Express 16x|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 2x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xOptical S/PDIF|1xRJ45|5xAudio port|B550AORUSELITEV21.5

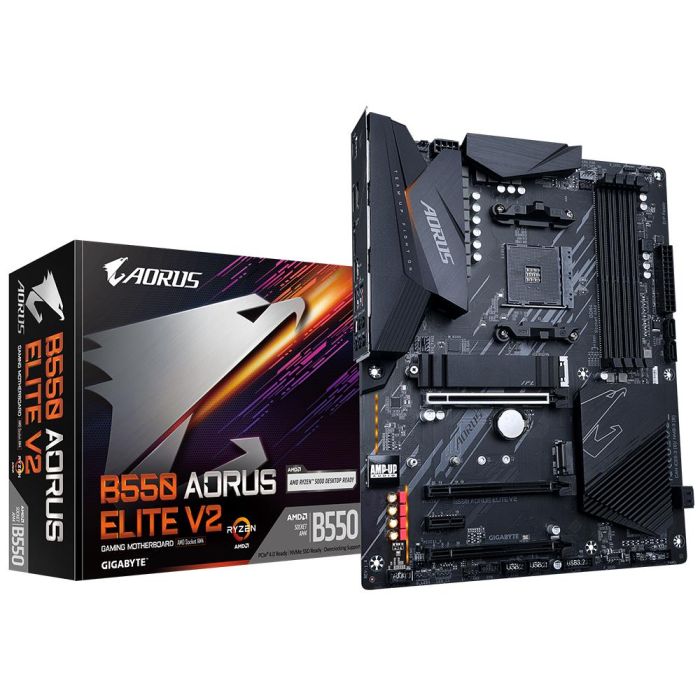

GIGABYTE B550 AORUS ELITE V2 1.5

+ Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
+ Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
+ 12+2 Phases Digital Twin Power Design with 50A DrMOS
+ Advanced Thermal Design with Enlarged Surface Heatsinks
+ Ultra Durable PCIe 4.0 x16 Slot
+ Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
+ High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
+ Blazing Fast 2.5GbE LAN with Bandwidth Management
+ Front USB 3.2 Gen1 Type-C and DisplayPort & HDMI for Multiple Display
+ RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
+ Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
+ Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
+ Pre-installed IO Shield for Easy and Quick Installation

Description

GIGABYTE B550 AORUS ELITE V2 1.5

+ Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
+ Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
+ 12+2 Phases Digital Twin Power Design with 50A DrMOS
+ Advanced Thermal Design with Enlarged Surface Heatsinks
+ Ultra Durable PCIe 4.0 x16 Slot
+ Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
+ High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
+ Blazing Fast 2.5GbE LAN with Bandwidth Management
+ Front USB 3.2 Gen1 Type-C and DisplayPort & HDMI for Multiple Display
+ RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
+ Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
+ Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
+ Pre-installed IO Shield for Easy and Quick Installation

Vendor Homepage

www.gigabyte.com/Motherboard/B550-AORUS-ELITE-V2-rev-15#kf

Model

B550 AORUS ELITE V2 1.5

Chipset

AMD B550

Socket

SAM4

Form Factor

ATX

Memory type

DDR4

Frequency speed

2133/2400/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz

Memory slots

4

M.2

2

PCI-Express 16x

1

PCI-Express 3.0 1x

2

PCI-Express 3.0 2x

1

Audio port

5

DisplayPort

1

HDMI

1

Optical S/PDIF

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

SATA

Yes

Integrated video

Depending on CPU

Integrated audio

Realtek ALC1220

Integrated LAN

2.5 Gigabit

RAID

SATA 0, 1, 10

TPM

Header

Units per Shipping Box

1

Shipping Box Depth

34 cm

Shipping Box Height

8 cm

Shipping Box Weight

1.57 kg

Shipping Box Width

27.5 cm

Unit Calculated Volume

0.00748 cubm

Product Net Weight

1.2 kg

Unit Calculated Weight

1.57 kg

CnCode

84733020

Unit Box Width

0.275

Unit Box Length

0.34

Unit Box Height

0.08

Full Description Line

SAM4|ATX|DDR4|4733/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2400/2133 MHz|Memory slots 4|1xPCI-Express 16x|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 2x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC1220|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM Header

Category Code

MBA
