Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 16x|2xPCI-Express 2.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|7xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|B650AELITEAXV21.1

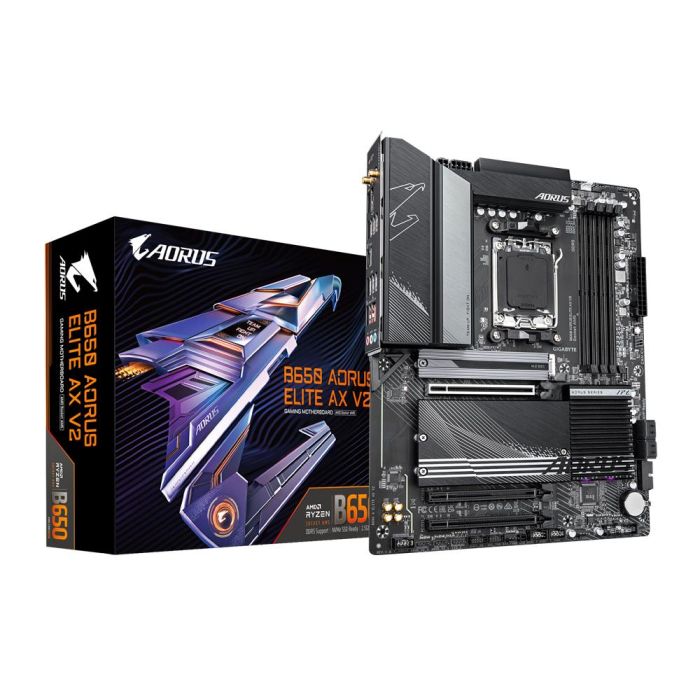

GIGABYTE B650 AORUS ELITE AX V2


AMD Socket AM5

Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors


Unparalleled Performance

Twin 12+2+2 Phases Digital VRM Solution


Dual Channel DDR5

4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support


Superfast Storage

1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors


Advanced Thermal Design & M.2 Thermal Guard

To Ensure VRM Power Stability & 25110 M.2 SSD Performance


EZ-Latch

PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design


Fast Networks

2.5GbE LAN & Wi-Fi 6E


Extended Connectivity

HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C 10Gb/s


Smart Fan 6

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


Q-Flash Plus

Update BIOS Without Installing the CPU, Memory and Graphics Card

Description

GIGABYTE B650 AORUS ELITE AX V2


AMD Socket AM5

Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors


Unparalleled Performance

Twin 12+2+2 Phases Digital VRM Solution


Dual Channel DDR5

4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support


Superfast Storage

1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors


Advanced Thermal Design & M.2 Thermal Guard

To Ensure VRM Power Stability & 25110 M.2 SSD Performance


EZ-Latch

PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design


Fast Networks

2.5GbE LAN & Wi-Fi 6E


Extended Connectivity

HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C 10Gb/s


Smart Fan 6

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


Q-Flash Plus

Update BIOS Without Installing the CPU, Memory and Graphics Card

Vendor Homepage

www.gigabyte.com/Motherboard/B650-AORUS-ELITE-AX-V2#kf

Model

B650 AORUS ELITE AX V2 1.1

Chipset

AMD B650

Socket

SAM5

Form Factor

ATX

Memory type

DDR5

Frequency speed

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz

Memory slots

4

M.2

3

PCI-Express 16x

1

PCI-Express 2.0 16x

2

Audio port

3

DisplayPort

1

HDMI

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

1

Bluetooth

Yes

SATA

Yes

WiFi

Yes

Integrated video

Depending on CPU

Integrated LAN

2.5 Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 10

TPM

Header

Units per Shipping Box

6

Shipping Box Depth

53.5 cm

Shipping Box Height

37.5 cm

Shipping Box Weight

13.9 kg

Shipping Box Width

31.3 cm

Unit Calculated Volume

0.01047 cubm

Product Net Weight

2 kg

Unit Calculated Weight

2.32 kg

Unit Box Width

0.272

Unit Box Length

0.08

Unit Box Height

0.338

Full Description Line

AMD B650|SAM5|ATX|DDR5|8000/7800/7600/7200/7000/6800/6666/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 16x|2xPCI-Express 2.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|7xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header

Category Code

MBA
