Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 16x|3xPCI-Express 3.0 16x|3xM.2|1xHDMI|1xDisplayPort|6xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|B650UDAX1.0Y1

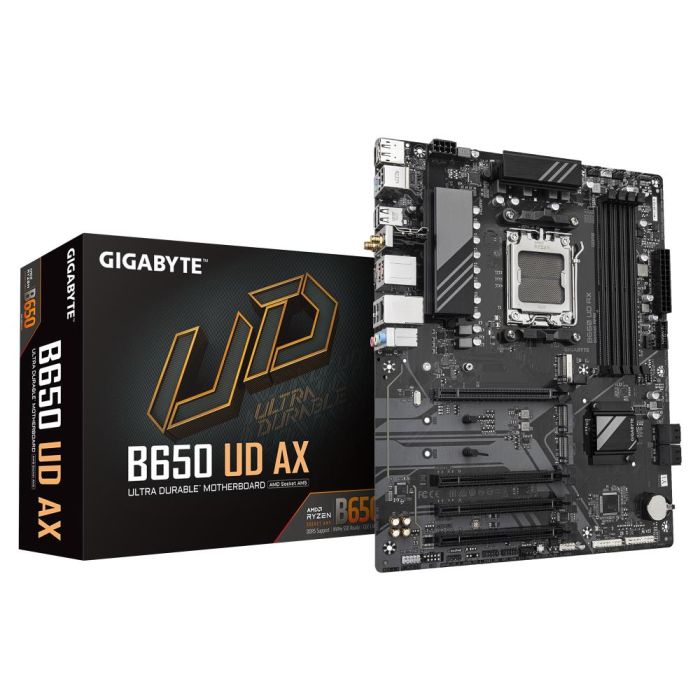

B650 UD AX (rev. 1.0)

AMD B650 Chipset - AMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
- Unparalleled Performance:6+2+2 Phases Digital VRM Solution
- Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage:1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- EZ-Latch:PCIe x16 Slot with Quick Release Design
- Fast Networks:Wi-Fi 6 802.11ax & GbE LAN
- Extended Connectivity:DP, HDMI, Rear USB® 10Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

Description

B650 UD AX (rev. 1.0)

AMD B650 Chipset - AMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
- Unparalleled Performance:6+2+2 Phases Digital VRM Solution
- Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage:1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- EZ-Latch:PCIe x16 Slot with Quick Release Design
- Fast Networks:Wi-Fi 6 802.11ax & GbE LAN
- Extended Connectivity:DP, HDMI, Rear USB® 10Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

Vendor Homepage

www.gigabyte.com/Motherboard/B650-UD-AX-rev-10#kf

Model

B650 UD AX (rev. 1.0)

Chipset

AMD B650

Socket

SAM5

Form Factor

ATX

Memory type

DDR5

Frequency speed

4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz

Memory slots

4

M.2

3

PCI-Express 16x

1

PCI-Express 3.0 16x

3

Audio port

3

DisplayPort

1

HDMI

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

Yes

SATA

Yes

Serial

Yes

WiFi

Yes

Integrated video

Depending on CPU

Integrated audio

Realtek ALC897

Integrated LAN

Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 10

TPM

Header

Units per Shipping Box

8

Shipping Box Depth

58 cm

Shipping Box Height

38 cm

Shipping Box Weight

12.7 kg

Shipping Box Width

37 cm

Unit Calculated Volume

0.01019 cubm

Product Net Weight

1.2 kg

Unit Calculated Weight

1.59 kg

CnCode

84733020

Unit Box Width

0.27

Unit Box Length

0.34

Unit Box Height

0.08

Full Description Line

AMD B650|SAM5|ATX|DDR5|7600/7200/7000/6800/6600/6400/6200/6000/5600/5200/4800 MHz|Memory slots 4|1xPCI-Express 16x|3xPCI-Express 3.0 16x|3xM.2|1xHDMI|1xDisplayPort|6xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|WiFi|Serial|Video Depending on CPU|Audio Realtek ALC897|LAN Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header

Category Code

MBA
