Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 16x|3xPCI-Express 3.0 16x|3xM.2|2xHDMI|1xDisplayPort|6xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|B650EAGLEAX1.1

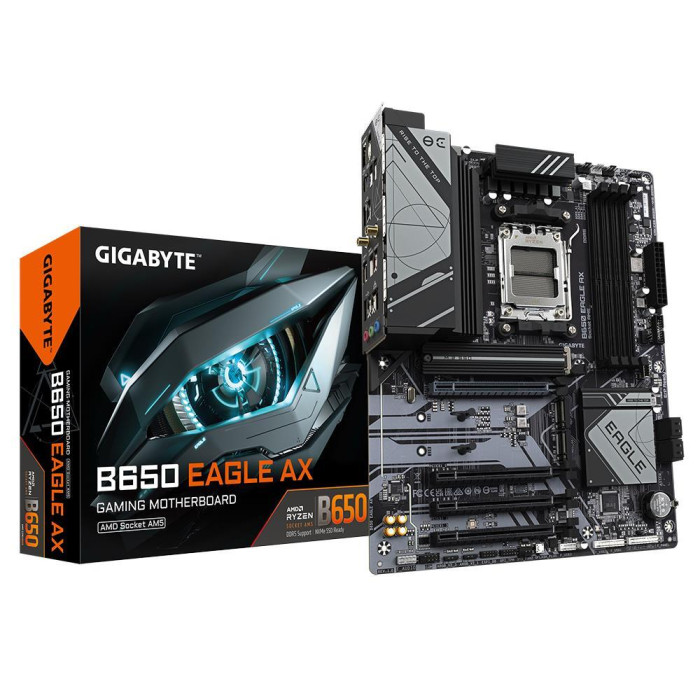

GIGABYTE B650 EAGLE AX


AMD Socket AM5

Supports AMD Ryzen 7000 Series Processors


Unparalleled Performance

12+2+2 Phases Digital VRM Solution


Dual Channel DDR5

4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support


SuperSpeed Storage

1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors


Advanced Thermal Design & M.2 Thermal Guard

To Ensure VRM Power Stability & 25110 M.2 SSD Performance


EZ-Latch

PCIe x16 Slot with Quick Release Design


Fast Networks

Wi-Fi 6E 802.11ax & GbE LAN


Extended Connectivity

DP, HDMI, Rear USB 10Gb/s


Smart Fan 6

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


Q-Flash Plus

Update BIOS Without Installing the CPU, Memory and Graphics Card

Description

GIGABYTE B650 EAGLE AX


AMD Socket AM5

Supports AMD Ryzen 7000 Series Processors


Unparalleled Performance

12+2+2 Phases Digital VRM Solution


Dual Channel DDR5

4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support


SuperSpeed Storage

1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors


Advanced Thermal Design & M.2 Thermal Guard

To Ensure VRM Power Stability & 25110 M.2 SSD Performance


EZ-Latch

PCIe x16 Slot with Quick Release Design


Fast Networks

Wi-Fi 6E 802.11ax & GbE LAN


Extended Connectivity

DP, HDMI, Rear USB 10Gb/s


Smart Fan 6

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


Q-Flash Plus

Update BIOS Without Installing the CPU, Memory and Graphics Card

Vendor Homepage

www.gigabyte.com/Motherboard/B650-EAGLE-AX#kf

Model

B650 EAGLE AX 1.1

Chipset

AMD B650

Socket

SAM5

Form Factor

ATX

Memory type

DDR5

Frequency speed

4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz

Memory slots

4

M.2

3

PCI-Express 16x

1

PCI-Express 3.0 16x

3

Audio port

3

DisplayPort

1

HDMI

2

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

1

SATA

Yes

Serial

Yes

Integrated video

Depending on CPU

Integrated LAN

Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 10

TPM

Header

Units per Shipping Box

8

Shipping Box Depth

57 cm

Shipping Box Height

38 cm

Shipping Box Weight

15.8 kg

Shipping Box Width

36.5 cm

Unit Calculated Volume

0.009882 cubm

Product Net Weight

1.5 kg

Unit Calculated Weight

1.98 kg

Category Code

MBA

Full Description Line

AMD B650|SAM5|ATX|DDR5|7600/7200/7000/6800/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 16x|3xPCI-Express 3.0 16x|3xM.2|2xHDMI|1xDisplayPort|6xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Serial|Video Depending on CPU|LAN Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
