Mainboard|GIGABYTE|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 16x|1xPCI-Express 3.0 1x|2xM.2|1xHDMI|2xDisplayPort|2xUSB 2.0|4xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B650MD3HPAX

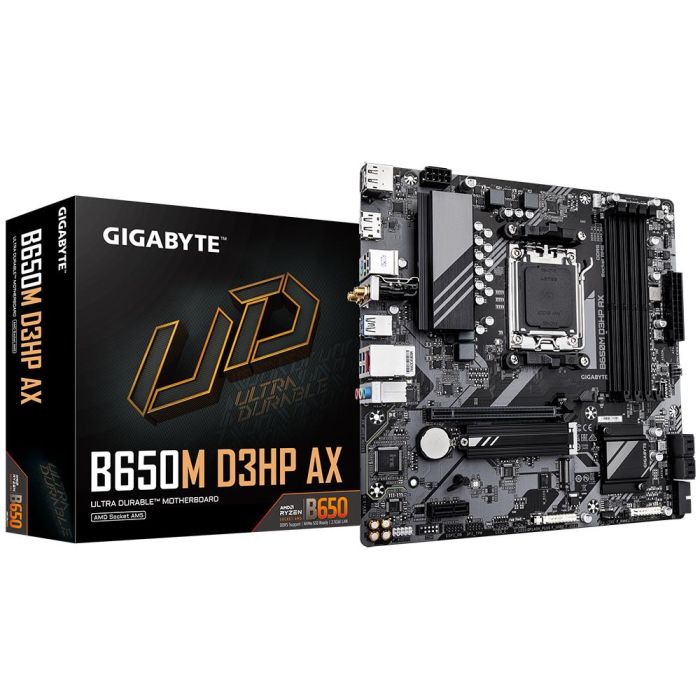

GIGABYTE B650M D3HP AX 1.0


AMD Socket AM5

Supports AMD Ryzen 7000 Series Processors


Unparalleled Performance

5+2+2 Phases Digital VRM Solution


Dual Channel DDR5

4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support


SuperSpeed Storage

PCIe 4.0 x4 M.2 Connector


EZ-Latch

PCIe x16 Slot with Quick Release Design


Fast Networks

Wi-Fi 6E 802.11ax & 2.5GbE LAN


Extended Connectivity

2*DP, HDMI


Smart Fan 6

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


Q-Flash Plus

Update BIOS Without Installing the CPU, Memory and Graphics Card

Description

GIGABYTE B650M D3HP AX 1.0


AMD Socket AM5

Supports AMD Ryzen 7000 Series Processors


Unparalleled Performance

5+2+2 Phases Digital VRM Solution


Dual Channel DDR5

4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support


SuperSpeed Storage

PCIe 4.0 x4 M.2 Connector


EZ-Latch

PCIe x16 Slot with Quick Release Design


Fast Networks

Wi-Fi 6E 802.11ax & 2.5GbE LAN


Extended Connectivity

2*DP, HDMI


Smart Fan 6

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


Q-Flash Plus

Update BIOS Without Installing the CPU, Memory and Graphics Card

Vendor Homepage

www.gigabyte.com/Motherboard/B650M-D3HP-AX-rev-10#kf

Model

B650M D3HP AX 1.0

Chipset

AMD B650

Socket

SAM5

Form Factor

Micro-ATX

Memory type

DDR5

Frequency speed

4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz

Memory slots

4

M.2

2

PCI-Express 16x

1

PCI-Express 3.0 1x

1

Audio port

3

DisplayPort

2

HDMI

1

PS/2

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

1

Bluetooth

Yes

SATA

Yes

WiFi

Yes

Integrated video

Depending on CPU

Integrated LAN

2.5 Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 10

TPM

Header

Units per Shipping Box

8

Shipping Box Depth

57 cm

Shipping Box Height

31 cm

Shipping Box Weight

13.5 kg

Shipping Box Width

32 cm

Unit Calculated Volume

0.007068 cubm

Product Net Weight

1.2 kg

Unit Calculated Weight

1.69 kg

Unit Box Width

0.27

Unit Box Length

0.275

Unit Box Height

0.07

Full Description Line

AMD B650|SAM5|Micro-ATX|DDR5|7600/7200/7000/6800/6600/6400/6200/6000/5600/5200/4800 MHz|Memory slots 4|1xPCI-Express 16x|1xPCI-Express 3.0 1x|2xM.2|1xHDMI|2xDisplayPort|2xUSB 2.0|4xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header

Category Code

MBA
