Mainboard|GIGABYTE|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|4xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B850EAGLEWF7ICE

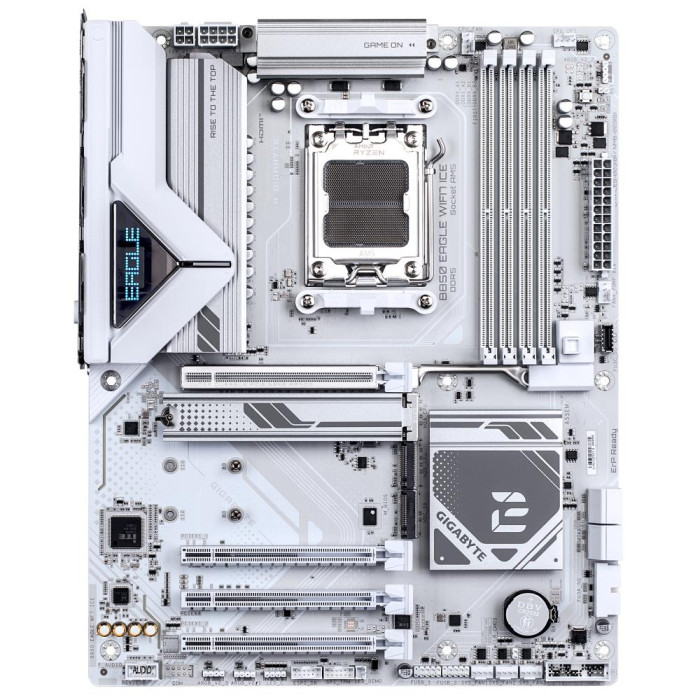

B850 EAGLE WIFI7 ICE

• X3D Turbo Mode : Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital 8+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : HDMI, Displayport
• PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Description

B850 EAGLE WIFI7 ICE

• X3D Turbo Mode : Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital 8+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : HDMI, Displayport
• PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Vendor Homepage

www.gigabyte.com/Motherboard/B850-EAGLE-WIFI7-ICE

Category Code

MBA

CnCode

84733020

Unit Box Height

0.081

Unit Box Length

0.34

Unit Box Width

0.271

PCI-Express 3.0 1x

2

PCI-Express 4.0 4x

1

PCI-Express 5.0 16x

1

M.2

3

HDMI

1

DisplayPort

1

USB 2.0

4

USB 3.2

4

USB-C

Yes

PS/2

1

RJ45

1

Audio port

3

SATA

Yes

Bluetooth

Yes

WiFi

Yes

Model

B850 EAGLE WIFI7 ICE

Chipset

AMD B850

Socket

SAM5

Form Factor

ATX

Memory type

DDR5

Frequency speed

4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz

Memory slots

4

Integrated video

Depending on CPU

Integrated audio

Yes

Integrated LAN

2.5 Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 5, 10

TPM

Header

Units per Shipping Box

8

Unit Calculated Volume

0 cubm

Product Net Weight

1 kg

Unit Calculated Weight

2 kg
