Mainboard|GIGABYTE|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|3xM.2|1xHDMI|1xDisplayPort|5xUSB 2.0|3xUSB 3.2 type B|2xUSB 3.2|2xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|B850GAMINGXWIFI6E

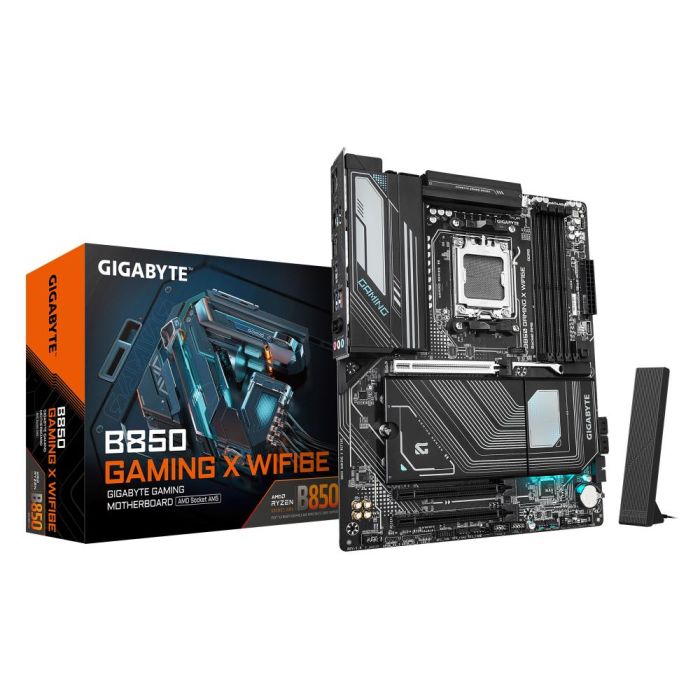

GIGABYTE B850 GAMING X WIFI6E


X3D Turbo Mode

Unleash new era gaming performance


DDR5 OC

up to 8200MT/s


AMD Socket AM5

Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors


Digital twin 12+2+2 phases

VRM solution


Dual Channel DDR5

4*DIMMs with AMD EXPO™Memory Module Support


WIFI EZ-Plug

Quick and easy design for Wi-Fi antenna installation


EZ-Latch Plus

PCIe and M.2 slots with Quick Release & Screwless Design


EZ-Latch Click

M.2 heatsinks with screwless design


Friendly UI

Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.


Ultra-Fast Storage

3*M.2 slots, including PCIe 5.0x4 slot


Efficient Thermal

VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.


Fast Networking

2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna


Extended Connectivity

HDMI, Displayport

Description

GIGABYTE B850 GAMING X WIFI6E


X3D Turbo Mode

Unleash new era gaming performance


DDR5 OC

up to 8200MT/s


AMD Socket AM5

Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors


Digital twin 12+2+2 phases

VRM solution


Dual Channel DDR5

4*DIMMs with AMD EXPO™Memory Module Support


WIFI EZ-Plug

Quick and easy design for Wi-Fi antenna installation


EZ-Latch Plus

PCIe and M.2 slots with Quick Release & Screwless Design


EZ-Latch Click

M.2 heatsinks with screwless design


Friendly UI

Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.


Ultra-Fast Storage

3*M.2 slots, including PCIe 5.0x4 slot


Efficient Thermal

VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.


Fast Networking

2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna


Extended Connectivity

HDMI, Displayport

Vendor Homepage

www.gigabyte.com/Motherboard/B850-GAMING-X-WIFI6E#kf

Model

B850 GAMING X WIFI6E

Chipset

AMD B850

Socket

SAM5

Form Factor

ATX

Memory type

DDR5

Frequency speed

4400/4800/5200/5600/5800/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz

Memory slots

4

M.2

3

PCI-Express 3.0 1x

2

DisplayPort

1

HDMI

1

Optical S/PDIF

1

PS/2

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB 3.2 type B

3

USB-C

Yes

Bluetooth

Yes

SATA

Yes

WiFi

Yes

Integrated video

Depending on CPU

Integrated audio

Yes

Integrated LAN

2.5 Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 5, 10

TPM

Header

Units per Shipping Box

1

Shipping Box Depth

34 cm

Shipping Box Height

8.2 cm

Shipping Box Weight

2.091 kg

Shipping Box Width

27 cm

Unit Calculated Volume

0.007528 cubm

Product Net Weight

1 kg

Unit Calculated Weight

2.09 kg

Unit Box Width

0.27

Unit Box Length

0.34

Unit Box Height

0.082

Full Description Line

AMD B850|SAM5|ATX|DDR5|8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/5800/5600/5200/4800/4400 MHz|Memory slots 4|2xPCI-Express 3.0 1x|3xM.2|1xHDMI|1xDisplayPort|5xUSB 2.0|3xUSB 3.2 type B|2xUSB 3.2|2xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10|TPM Header

Category Code

MBA
