Mainboard|GIGABYTE|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|4xUSB 2.0|4xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|X870EAGLEWIFI71.1

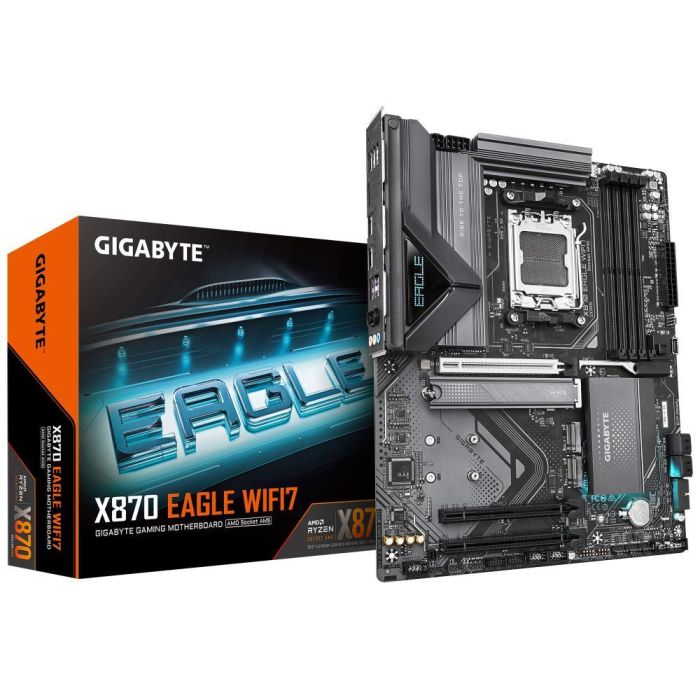

X870 EAGLE WIFI7

• AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 14+2+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click：M.2 heatsinks with screwless design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
• Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI

Description

X870 EAGLE WIFI7

• AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 14+2+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click：M.2 heatsinks with screwless design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
• Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI

Vendor Homepage

www.gigabyte.com/Motherboard/X870-EAGLE-WIFI7#kf

Category Code

MBA

Unit Box Height

0.08

Unit Box Length

0.34

Unit Box Width

0.27

M.2

3

PCI-Express 3.0 1x

2

PCI-Express 5.0 16x

1

RJ45

1

USB 3.2

Да

USB тип C

2

Аудио порт

3

Выход HDMI

1

Наличие USB 2.0

Да

Bluetooth

Да

USB-C

Да

Наличие SATA

Да

Наличие WiFi

Да

Модель

X870 EAGLE WIFI7 (1.1)

Чипсет

AMD X870

Socket

SAM5

Форм-фактор

ATX

Тип оперативной памяти

DDR5

Частота работы оперативной памяти

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 МГц

Количество слотов памяти

4 слота

Встроенная видео карта

Depending on CPU

Встроенная звуковая карта

Да

Встроенный сетевой адаптер

2.5 Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 5, 10

TPM

Header

Количество в транспортной упаковке

1

Объем

0.007344 м3

Вес без упаковки

1.2 кг

Вес в упаковке

1.792 кг
