Mainboard|GIGABYTE|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 2x|1xPCI-Express 4.0 4x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|4xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|X870AELITEWF7ICE1.1

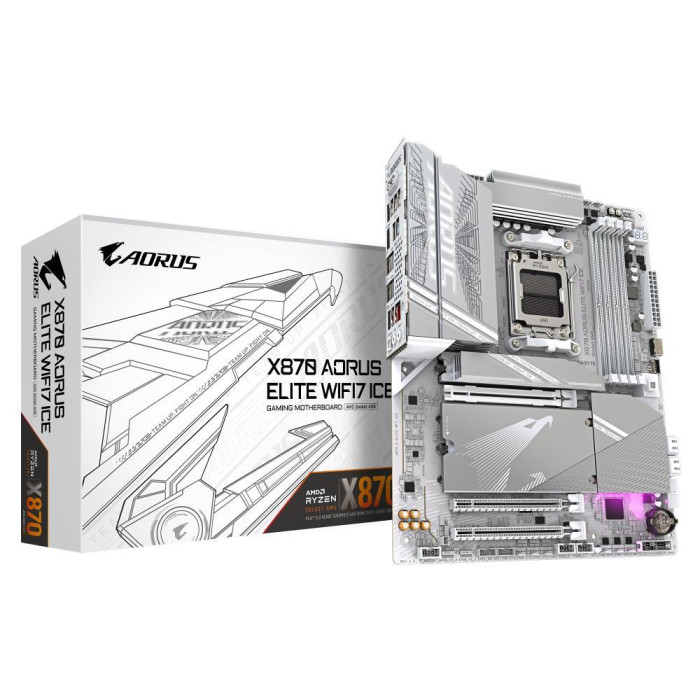

X870 AORUS ELITE WIFI7 ICE

Key Features

• AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 16+2+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click：M.2 heatsinks with screwless design
• Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
• Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
• Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
• Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
• PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card

Description

X870 AORUS ELITE WIFI7 ICE

Key Features

• AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 16+2+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click：M.2 heatsinks with screwless design
• Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
• Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
• Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
• Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
• PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card

Vendor Homepage

www.gigabyte.com/Motherboard/X870-AORUS-ELITE-WIFI7-ICE#kf

Category Code

MBA

CnCode

84733020

Unit Box Height

0.38

Unit Box Length

0.45

Unit Box Width

0.31

M.2

4

PCI-Express 3.0 2x

1

PCI-Express 4.0 4x

1

PCI-Express 5.0 16x

1

Audio port

2

HDMI

1

Optical S/PDIF

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

Yes

Bluetooth

Yes

SATA

Yes

WiFi

Yes

Model

X870 AORUS ELITE WIFI7 ICE

Chipset

AMD X870E

Socket

SAM5

Form Factor

ATX

Memory type

DDR5

Frequency speed

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz

Memory slots

4

Integrated video

Depending on CPU

Integrated audio

Realtek ALC1220

Integrated LAN

2.5 Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 5, 10

TPM

Header

Units per Shipping Box

5

Unit Calculated Volume

0.01018 cubm

Product Net Weight

2.2 kg

Unit Calculated Weight

2.59 kg
