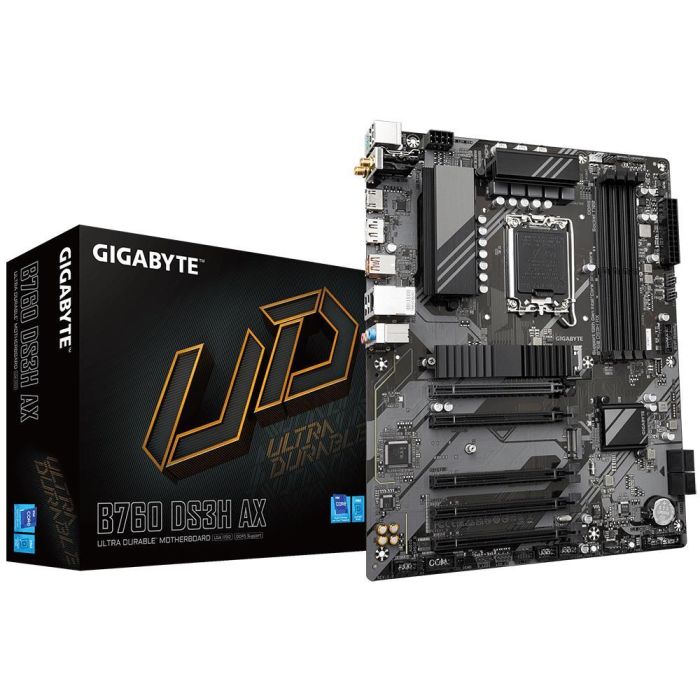

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|4xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xAudio-In|1xAudio-Out|4xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|2xRF-Out|B760DS3HAX1.1

- Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
- Unparalleled Performance:Hybrid 8+2+1 Phases Digital VRM Solution
- Dual Channel DDR5:4*DIMMs XMP Memory Module Support
- Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks:GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity:Rear USB-C® 20Gb/s, DP, HDMI
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

Description

- Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
- Unparalleled Performance:Hybrid 8+2+1 Phases Digital VRM Solution
- Dual Channel DDR5:4*DIMMs XMP Memory Module Support
- Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks:GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity:Rear USB-C® 20Gb/s, DP, HDMI
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

Vendor Homepage

www.gigabyte.com/Motherboard/B760-DS3H-AX-rev-1x

Model

B760 DS3H AX 1.1

Chipset

Intel B760 Express

Socket

LGA1700

Form Factor

ATX

Memory type

DDR5

Frequency speed

4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz

Memory slots

4

M.2

2

PCI-Express 3.0 1x

4

PCI-Express 4.0 16x

1

Audio-In

2

Audio-Out

1

DisplayPort

1

HDMI

1

PS/2

1

RF-Out

2

RJ45

1

USB 2.0

4

USB 3.2

1

USB-C

1

Bluetooth

Yes

SATA

Yes

WiFi

Yes

Integrated video

Yes

Integrated LAN

Gigabit

Integrated audio

Yes

RAID

SATA 0, 1, 5, 10

TPM

Header

Units per Shipping Box

1

Shipping Box Depth

34 cm

Shipping Box Height

8.5 cm

Shipping Box Weight

1.35 kg

Shipping Box Width

27 cm

Unit Calculated Volume

0.007803 cubm

Product Net Weight

0.9 kg

Unit Calculated Weight

1.35 kg

Unit Box Width

0.27

Unit Box Length

0.34

Unit Box Height

0.085

Full Description Line

Intel B760 Express|LGA1700|ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|4xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xAudio-In|1xAudio-Out|4xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|2xRF-Out|SATA|Bluetooth|WiFi|Video|LAN Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header

Category Code

MBI
