Mainboard|GIGABYTE|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|H610MHV3DDR4

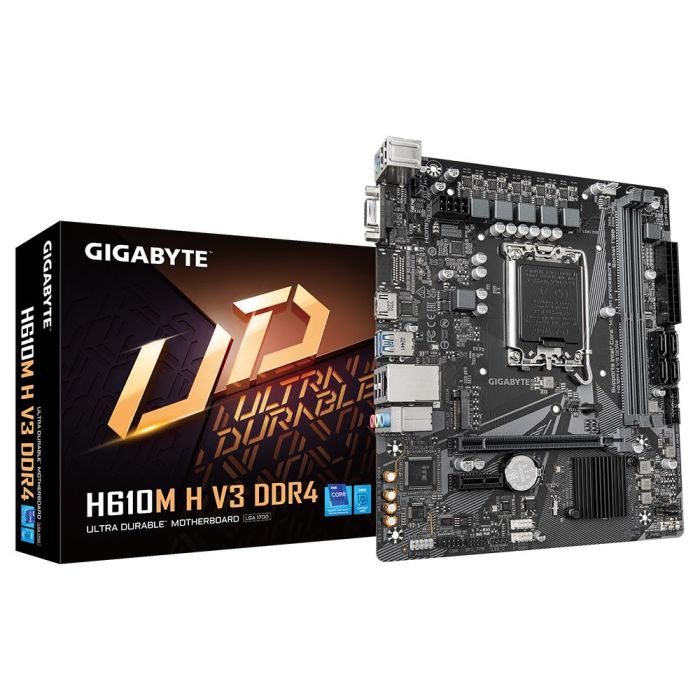

GIGABYTE H610M H V3 DDR4 (rev. 1.0)

Intel H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6

+ Supports Intel Core 14th/ 13th /12th processors
+ Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
+ 4+1+1 Hybrid Digital VRM Design
+ GbE LAN with Bandwidth Management
+ NVMe PCIe 3.0 x4 M.2
+ High Quality Audio Capacitors and Audio Noise Guard
+ Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
+ GIGABYTE APP Center, Simple and Easy Use
+ Anti-Sulfur Resistors Design


GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.


Solid Pin Power Connectors

H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.


BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Description

GIGABYTE H610M H V3 DDR4 (rev. 1.0)

Intel H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6

+ Supports Intel Core 14th/ 13th /12th processors
+ Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
+ 4+1+1 Hybrid Digital VRM Design
+ GbE LAN with Bandwidth Management
+ NVMe PCIe 3.0 x4 M.2
+ High Quality Audio Capacitors and Audio Noise Guard
+ Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
+ GIGABYTE APP Center, Simple and Easy Use
+ Anti-Sulfur Resistors Design


GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.


Solid Pin Power Connectors

H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.


BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Vendor Homepage

www.gigabyte.com/Motherboard/H610M-H-V3-DDR4-rev-10#kf

Model

H610M H V3 DDR4

Chipset

Intel H610

Socket

LGA1700

Form Factor

Micro-ATX

Memory type

DDR4

Frequency speed

2133/2400/2666/2933/3000/3200 MHz

Memory slots

2

M.2

1

PCI-Express 3.0 1x

1

PCI-Express 4.0 16x

1

15pin D-sub

1

Audio port

3

HDMI

1

PS/2

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

SATA

Yes

Serial

Yes

Integrated video

Depending on CPU

Integrated LAN

Gigabit

Integrated audio

Yes

TPM

Header

Units per Shipping Box

10

Shipping Box Depth

56.5 cm

Shipping Box Height

26 cm

Shipping Box Weight

7.53 kg

Shipping Box Width

28 cm

Unit Calculated Volume

0.004113 cubm

Product Net Weight

0.68 kg

Unit Calculated Weight

0.753 kg

Unit Box Width

0.235

Unit Box Length

0.265

Unit Box Height

0.055

Full Description Line

Intel H610|LGA1700|Micro-ATX|DDR4|3200/3000/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Serial|Video Depending on CPU|LAN Gigabit|Audio|TPM Header

Category Code

MBI
