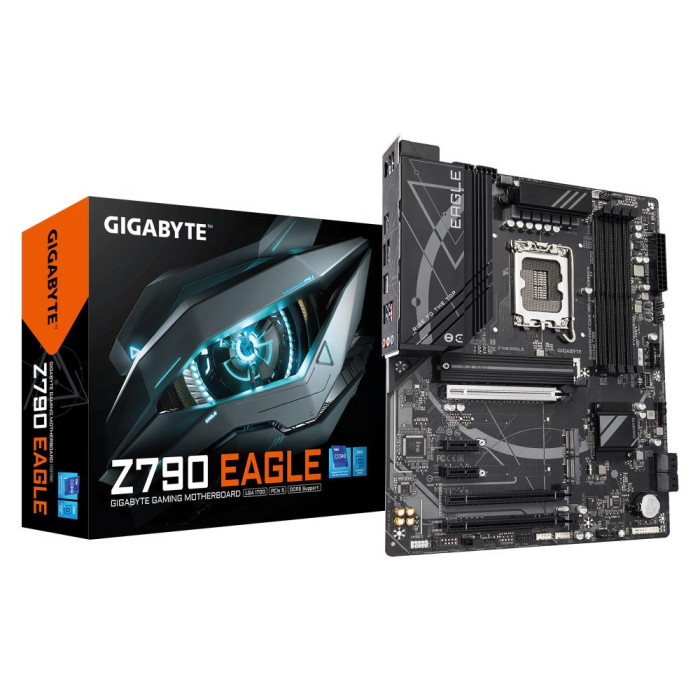

Mainboard|GIGABYTE|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|6xUSB 2.0|6xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|3xAudio port|Z790EAGLE1.0

Z790 EAGLE - Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution
- Dual Channel DDR5:4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch:PCIe 5.0x16 Slot with Quick Release Design
- Fast Networks:2.5GbE LAN
- Extended Connectivity:DP, HDMI, Rear USB-C® 10Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
- * 6+6 phases parallel power design

Durable Performance

Future Connectivity

Easy Friendly

Description

Z790 EAGLE - Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution
- Dual Channel DDR5:4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch:PCIe 5.0x16 Slot with Quick Release Design
- Fast Networks:2.5GbE LAN
- Extended Connectivity:DP, HDMI, Rear USB-C® 10Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
- * 6+6 phases parallel power design

Durable Performance

Future Connectivity

Easy Friendly

Vendor Homepage

www.gigabyte.com/Motherboard/Z790-EAGLE-rev-10#kf

Model

Z790 EAGLE (rev. 1.0)

Chipset

Intel Z790

Socket

LGA1700

Form Factor

ATX

Memory type

DDR5

Frequency speed

4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz

Memory slots

4

M.2

3

PCI-Express 3.0 1x

3

PCI-Express 4.0 4x

1

PCI-Express 5.0 16x

1

Audio port

3

DisplayPort

1

HDMI

1

Optical S/PDIF

1

PS/2

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

Yes

SATA

Yes

Integrated video

Depending on CPU

Integrated LAN

2.5 Gigabit

Integrated audio

Yes

RAID

SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10

TPM

Header

Units per Shipping Box

8

Shipping Box Depth

57.7 cm

Shipping Box Height

38.6 cm

Shipping Box Weight

14.6 kg

Shipping Box Width

37.3 cm

Unit Calculated Volume

0.01038 cubm

Product Net Weight

0.7 kg

Unit Calculated Weight

1.82 kg

CnCode

84733020

Unit Box Width

0.081

Unit Box Length

0.271

Unit Box Height

0.342

Full Description Line

Intel Z790|LGA1700|ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4400 MHz|Memory slots 4|3xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|6xUSB 2.0|6xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header

Category Code

MBI
