Mainboard|GIGABYTE|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|Z790DAX1.1

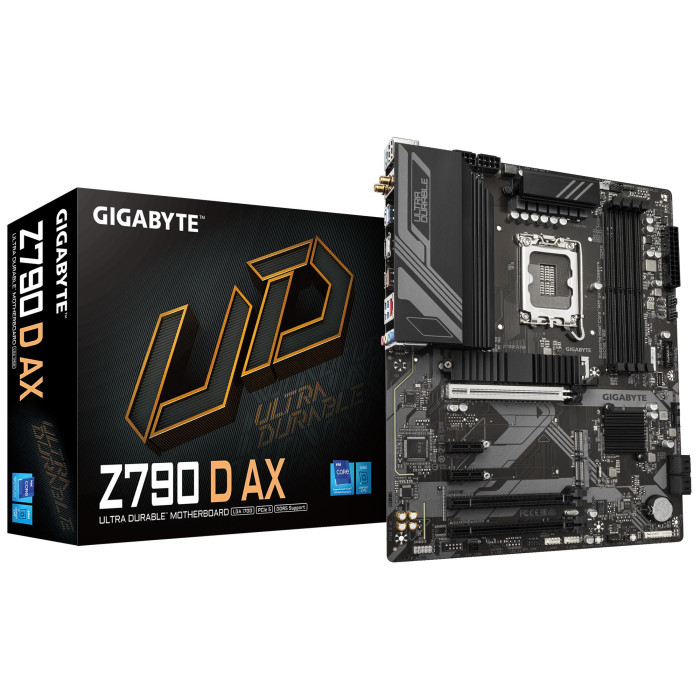

Z790 D AX

• Supports Intel® Core™ 14th/ 13th /12th processors
• Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
• Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

• Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Description

Z790 D AX

• Supports Intel® Core™ 14th/ 13th /12th processors
• Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
• Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

• Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Vendor Homepage

www.gigabyte.com/Motherboard/Z790-D-AX-rev-10

Category Code

MBI

CnCode

84733020

Unit Box Height

0.08

Unit Box Length

0.33

Unit Box Width

0.27

M.2

3

PCI-Express 3.0 16x

1

PCI-Express 3.0 1x

2

PCI-Express 4.0 16x

1

PCI-Express 5.0 16x

1

Audio port

3

DisplayPort

1

HDMI

1

PS/2

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

Yes

Bluetooth

Yes

WiFi

Yes

Model

Z790 D AX (rev. 1.0)

Chipset

Intel Z790

Socket

LGA1700

Form Factor

ATX

Memory type

DDR5

Frequency speed

4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz

Memory slots

4

Integrated video

Depending on CPU

Integrated LAN

2.5 Gigabit

RAID

SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10

TPM

Header

Units per Shipping Box

8

Unit Calculated Volume

0.0099253 cubm

Product Net Weight

1.4 kg

Unit Calculated Weight

1.85625 kg
