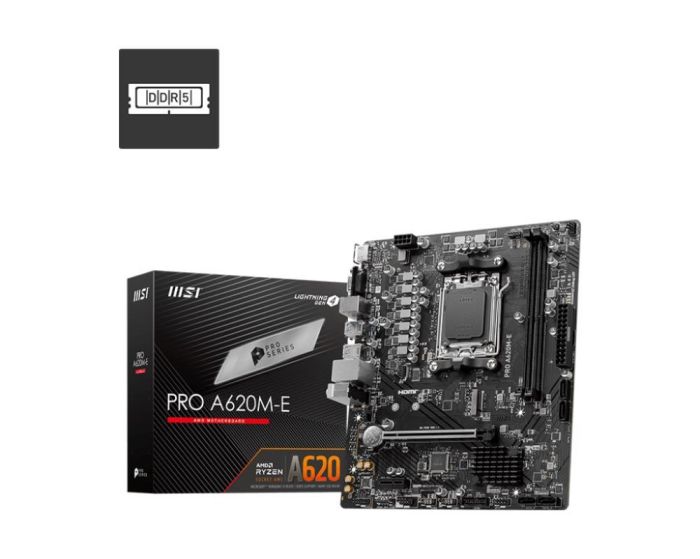

Mainboard|MSI|AMD A620|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|2xPS/2|1xRJ45|3xAudio port|PROA620M-E

- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Description

- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Vendor Homepage

www.msi.com/Motherboard/PRO-A620M-E

Model

PRO A620M-E

Chipset

AMD A620

Socket

SAM5

Form Factor

Micro-ATX

Memory type

DDR5

Frequency speed

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz

Memory slots

2

M.2

1

PCI-Express 3.0 1x

1

PCI-Express 4.0 16x

1

15pin D-sub

1

Audio port

3

HDMI

1

PS/2

2

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

SATA

Yes

Integrated video

Depending on CPU

Integrated audio

Realtek ALC897

Integrated LAN

Realtek RTL8111H (Gigabit)

RAID

SATA 0, 1, 10

TPM

Header

Units per Shipping Box

20

Shipping Box Depth

59.5 cm

Shipping Box Height

28.5 cm

Shipping Box Weight

17.85 kg

Shipping Box Width

53.5 cm

Unit Calculated Volume

0.004536 cubm

Product Net Weight

0.6 kg

Unit Calculated Weight

0.893 kg

Unit Box Width

0.26

Unit Box Length

0.26

Unit Box Height

0.055

Full Description Line

AMD A620|SAM5|Micro-ATX|DDR5|6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|2xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC897|LAN Realtek RTL8111H (Gigabit)|RAID SATA 0, 1, 10|TPM Header

Category Code

MBA
