Mainboard|MSI|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 2x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|3xAudio port|PROB650-AWIFI

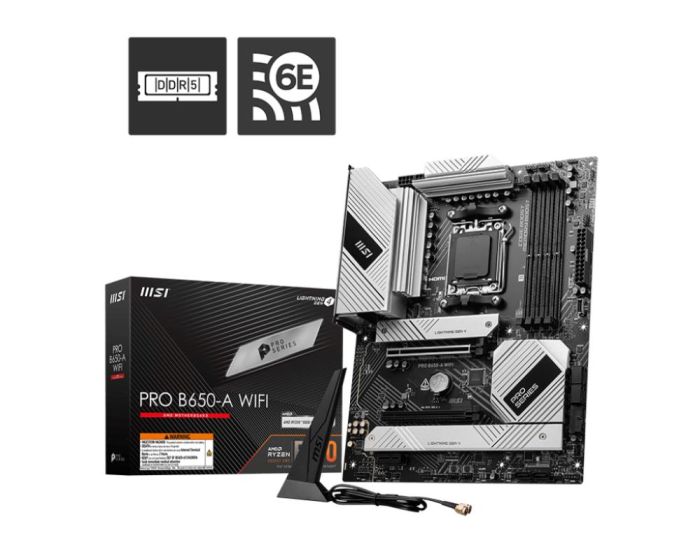

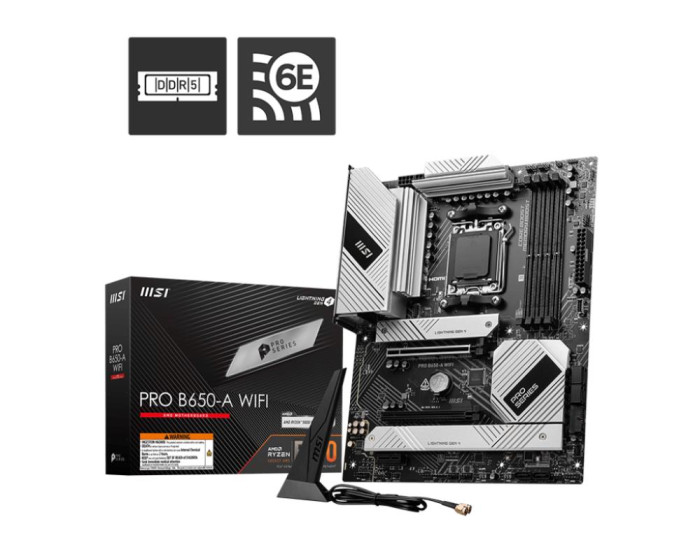

PRO B650-A WIFI - Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7600+MHz (OC)
- Enhanced Power Design: 14+2 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description

PRO B650-A WIFI - Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7600+MHz (OC)
- Enhanced Power Design: 14+2 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Vendor Homepage

www.msi.com/Motherboard/PRO-B650-A-WIFI

Model

PRO B650-A WIFI

Chipset

AMD B650

Socket

SAM5

Form Factor

ATX

Memory type

DDR5

Frequency speed

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz

Memory slots

4

M.2

3

PCI-Express 3.0 1x

1

PCI-Express 4.0 16x

1

PCI-Express 4.0 2x

1

Audio port

3

DisplayPort

1

HDMI

1

Optical S/PDIF

1

RJ45

1

USB 2.0

2

USB 3.2

7

USB-C

1

Bluetooth

Yes

SATA

Yes

WiFi

Yes

Integrated video

Depending on CPU

Integrated audio

Realtek ALC4080

Integrated LAN

2.5 Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 10

TPM

Header

Units per Shipping Box

5

Shipping Box Depth

38 cm

Shipping Box Height

38 cm

Shipping Box Weight

10.01 kg

Shipping Box Width

29 cm

Unit Calculated Volume

0.008375 cubm

Product Net Weight

0.8 kg

Unit Calculated Weight

2 kg

CnCode

84733020

Unit Box Width

0.27

Unit Box Length

0.345

Unit Box Height

0.07

Full Description Line

AMD B650|SAM5|ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 2x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|3xAudio port|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC4080|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header

Category Code

MBA
