Mainboard|MSI|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 4x|1xPCI-Express 4.0 8x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|3xUSB 2.0|4xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|MAGB850MMORTARWIFI

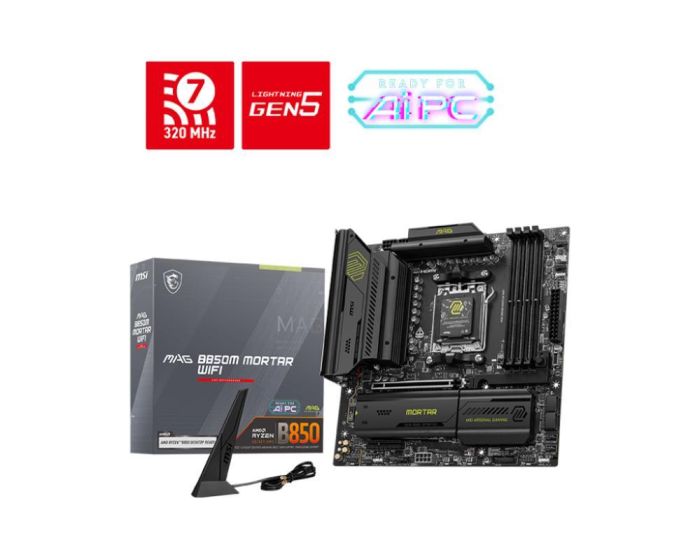

MAG B850M MORTAR WIFI

MAG B850M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors. - Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, 20G USB Type-C
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

Description

MAG B850M MORTAR WIFI

MAG B850M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors. - Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, 20G USB Type-C
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

Vendor Homepage

www.msi.com/Motherboard/MAG-B850M-MORTAR-WIFI

Model

MAG B850M MORTAR WIFI

Chipset

AMD B850

Socket

SAM5

Form Factor

Micro-ATX

Memory type

DDR5

Frequency speed

4800/5600/6400/8200 MHz

Memory slots

4

M.2

3

PCI-Express 4.0 16x

1

PCI-Express 4.0 4x

1

PCI-Express 4.0 8x

1

PCI-Express 5.0 16x

1

Audio port

2

HDMI

1

Optical S/PDIF

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

Yes

Bluetooth

Yes

SATA

Yes

WiFi

Yes

Integrated video

Depending on CPU

Integrated audio

Realtek ALC4080

Integrated LAN

5 Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 5

TPM

Header

Units per Shipping Box

10

Shipping Box Depth

56 cm

Shipping Box Height

30.5 cm

Shipping Box Weight

19.27 kg

Shipping Box Width

37.7 cm

Unit Calculated Volume

0.006439 cubm

Product Net Weight

0.8 kg

Unit Calculated Weight

1.93 kg

CnCode

84733020

Unit Box Width

0.271

Unit Box Length

0.282

Unit Box Height

0.07

Full Description Line

AMD B850|SAM5|Micro-ATX|DDR5|8200/6400/5600/4800 MHz|Memory slots 4|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 8x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|3xUSB 2.0|4xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC4080|LAN 5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5|TPM Header

Category Code

MBA
