Mainboard|MSI|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|PROB850M-PWIFI

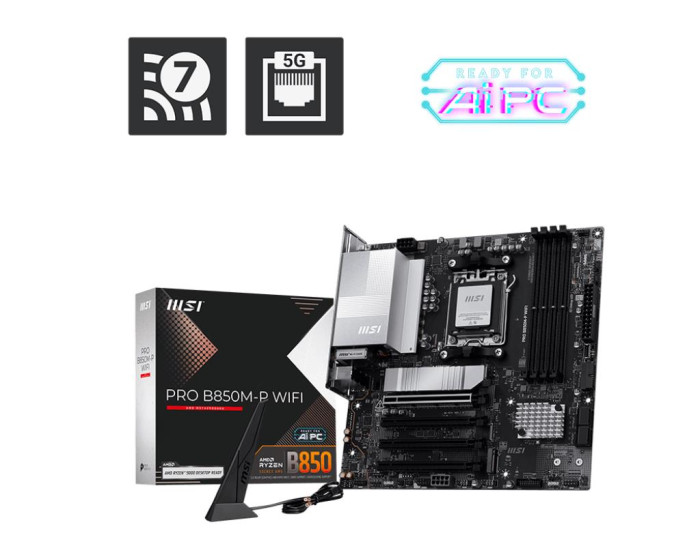

PRO B850M-P WIFI

PRO B850M-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
• 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description

PRO B850M-P WIFI

PRO B850M-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
• 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Vendor Homepage

www.msi.com/Motherboard/PRO-B850M-P-WIFI

Category Code

MBA

CnCode

84733020

Unit Box Height

0.075

Unit Box Length

0.275

Unit Box Width

0.285

M.2

3

PCI-Express 3.0 1x

3

PCI-Express 5.0 16x

1

Audio port

3

HDMI

1

HDMI Micro (D)

1

RJ45

1

USB 2.0

4

USB 3.2

3

USB-C

Yes

Bluetooth

Yes

SATA

Yes

WiFi

Yes

Model

PRO B850M-P WIFI

Chipset

AMD B850

Socket

SAM5

Form Factor

Micro-ATX

Memory type

DDR5

Frequency speed

4800/5600/8200 MHz

Memory slots

4

Integrated video

Depending on CPU

Integrated audio

Realtek ALC897

Integrated LAN

5 Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 5

TPM

Header

Units per Pallet

0

Units per Shipping Box

10

Unit Calculated Volume

0.006568 cubm

Product Net Weight

0.7 kg

Unit Calculated Weight

1.41 kg
