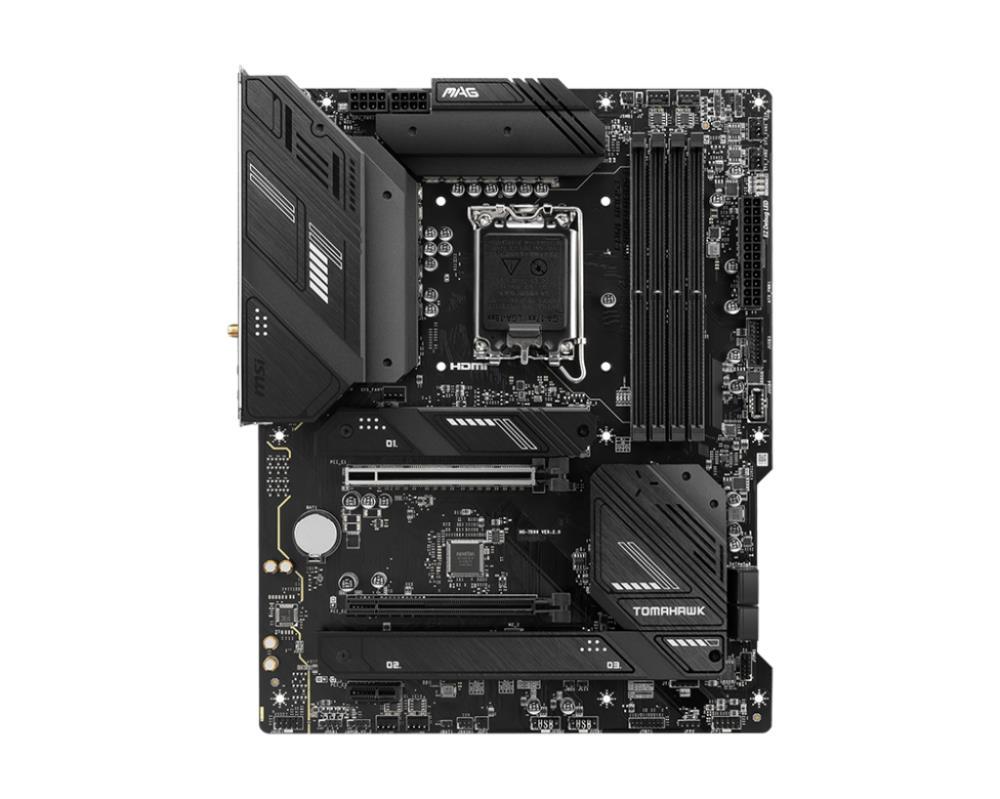

Mainboard|MSI|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|2xPCI-Express 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|4xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|MAGB760TOMAHAWKWIFI

- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7000+(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Description

- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7000+(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Vendor Homepage

www.msi.com/Motherboard/MAG-B760-TOMAHAWK-WIFI

Model

MAG B760 TOMAHAWK WIFI

Chipset

Intel B760 Express

Socket

LGA1700

Form Factor

ATX

Memory type

DDR5

Frequency speed

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000 MHz

Memory slots

4

M.2

3

PCI-Express 16x

2

PCI-Express 1x

1

Audio port

5

DisplayPort

1

HDMI

1

Optical S/PDIF

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

1

Bluetooth

Yes

SATA

Yes

WiFi

Yes

Integrated video

Depending on CPU

Integrated LAN

2.5 Gigabit

Integrated audio

Realtek ALC897

RAID

SATA 0, 1, 5, 10

TPM

Header

Units per Shipping Box

1

Shipping Box Depth

34.5 cm

Shipping Box Height

7 cm

Shipping Box Weight

1.76 kg

Shipping Box Width

27 cm

Unit Calculated Volume

0.0065205 cubm

Product Net Weight

1.2 kg

Unit Calculated Weight

1.76 kg

Unit Box Width

0.27

Unit Box Length

0.345

Unit Box Height

0.07

Full Description Line

Intel B760 Express|LGA1700|ATX|DDR5|7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|2xPCI-Express 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|4xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
