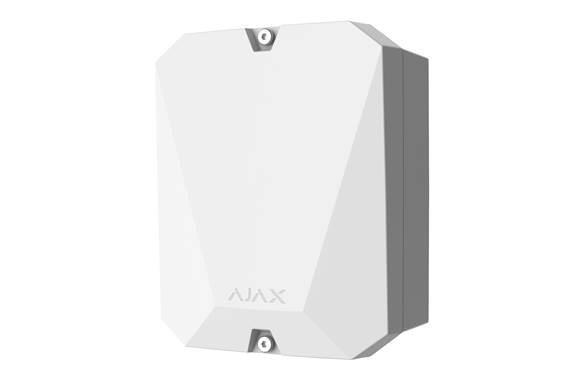

MODULE WRL MULTITRANSMITTER/3EOL WHITE 38200 AJAX

A module for integrating third-party wired devices into Ajax.

MultiTransmitter is an integration module with 18 wired zones for connecting third-party detectors to Ajax security system. The module runs on 110–255 V AC or 12 V DC. Additionally, it can supply 12 V power to the connected detectors.

Operates only with Hub, Hub Plus, Hub 2, Hub 2 Plus and ReX

The updated version supports 2EOL and 3EOL connections, more types of alarms, and an extended EOL resistance value range.

Description

A module for integrating third-party wired devices into Ajax.

MultiTransmitter is an integration module with 18 wired zones for connecting third-party detectors to Ajax security system. The module runs on 110–255 V AC or 12 V DC. Additionally, it can supply 12 V power to the connected detectors.

Operates only with Hub, Hub Plus, Hub 2, Hub 2 Plus and ReX

The updated version supports 2EOL and 3EOL connections, more types of alarms, and an extended EOL resistance value range.

Vendor Homepage

ajax.systems/products/multitransmitter/

Category Code

ADM

CnCode

85311030

Unit Box Height

0.105

Unit Box Length

0.245

Unit Box Width

0.22

Max. number of zones

18

Colour

White

Dimensions

196 × 238 × 100 mm

Units per Shipping Box

1

Unit Calculated Volume

0.005659 cubm

Product Net Weight

0.805 kg

Unit Calculated Weight

1.13 kg
