NAS STORAGE TOWER 2BAY/TS-253E-8G QNAP

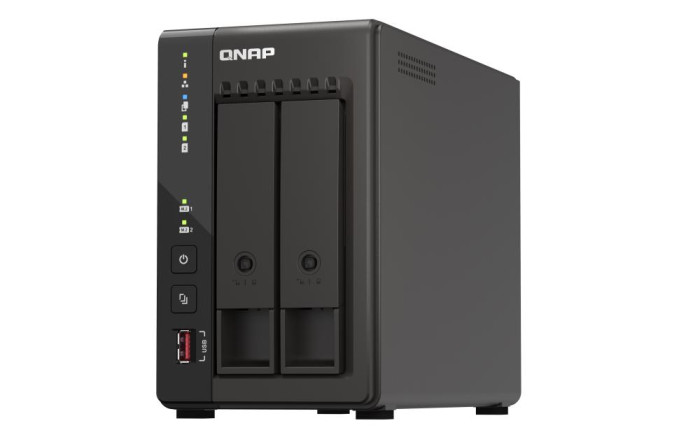

QNAP TS-253E


The TS-253E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-253E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.


The TS-253E uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.1.)


Dual 2.5GbE ports

2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.


Dual M.2 2280 PCIe slots

Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.


8GB RAM onboard

System performance and multitasking is optimized with 8GB RAM.


Long-term model

The TS-253E will be available and supported by QNAP for an extended period, up to 2029.


Dual HDMI output

The dual-screen extension can be used for surveillance or 4K high-resolution video playback.


Expand storage capacity

Supports USB expansion enclosures (see the compatibility list).

Description

QNAP TS-253E


The TS-253E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-253E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.


The TS-253E uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.1.)


Dual 2.5GbE ports

2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.


Dual M.2 2280 PCIe slots

Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.


8GB RAM onboard

System performance and multitasking is optimized with 8GB RAM.


Long-term model

The TS-253E will be available and supported by QNAP for an extended period, up to 2029.


Dual HDMI output

The dual-screen extension can be used for surveillance or 4K high-resolution video playback.


Expand storage capacity

Supports USB expansion enclosures (see the compatibility list).

Vendor Homepage

www.qnap.com/en/product/ts-253e

Model

TS-253E-8G

NAS features

Ready-to-go

CPU

Intel Celeron J6412 4-core/4-thread processor, burst up to 2.6 GHz

Number of drives/bays

2

Supported drives

3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives

Desktop/pedestal

Yes

HDMI

2

RJ45

2

USB 2.0

2

USB 3.2

2

Memory

8 GB

HDD

Yes

LAN

Yes

Status

Yes

USB

Yes

Power consumption

18.09 Watts

Power supply requirements

60W/65W adapter, 100-240V

Dimensions

168.5 × 102 × 225 mm

Units per Shipping Box

1

Shipping Box Depth

27.5 cm

Shipping Box Height

24 cm

Shipping Box Weight

2.563 kg

Shipping Box Width

20.5 cm

Unit Calculated Volume

0.01353 cubm

Product Net Weight

1.28 kg

Unit Calculated Weight

2.56 kg

Category Code

STS

Full Description Line

NAS Ready-to-go|CPU Intel Celeron J6412 4-core/4-thread processor, burst up to 2.6 GHz|Drives/bays 2|Desktop/pedestal|2xHDMI|2xUSB 2.0|2xUSB 3.2|2xRJ45|Memory 8 GB|Status|USB|HDD|LAN|Power consumption 18.09 Watts|Power supply requirements 60W/65W adapter, 100-240V
