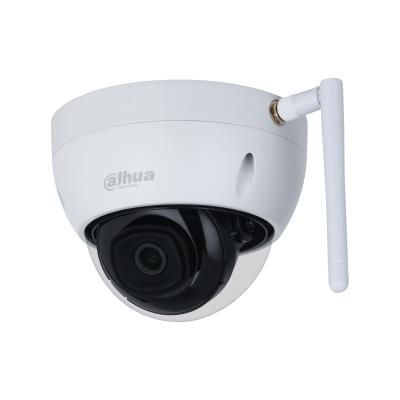

NET CAMERA 2MP IR DOME WIFI/IPC-HDBW1230DE-SW-0280B DAHUA

1/3” 2Megapixel CMOS, 1920×1080 @30FPS FullHD realtime

Minimum illumination: 0.025 lux @ F2.0 (Color, 30 IRE), 0.0025 lux @ F2.0 (B/W, 30 IRE)

True Day/Night (ICR), BLC/ HLC/ DWDR / 3D DNR

Fixed lend 2.8 mm Lens (100°)

Up to 30 meters IR Illumination, Smart IR

H.265+/H.265/H.264+/H.264 encoding, ONVIF (Profile S/Profile T); CGI; P2P; Genetec

Micro SD card (support max. 256 GB)

Wi-Fi IEEE802.11b/g/n 2.4–2.4835 GHz

Dome design, IK10, IP67, -40°C~+60°C, 12VDC power, adapter included

Free IP monitoring software available

Description

1/3” 2Megapixel CMOS, 1920×1080 @30FPS FullHD realtime

Minimum illumination: 0.025 lux @ F2.0 (Color, 30 IRE), 0.0025 lux @ F2.0 (B/W, 30 IRE)

True Day/Night (ICR), BLC/ HLC/ DWDR / 3D DNR

Fixed lend 2.8 mm Lens (100°)

Up to 30 meters IR Illumination, Smart IR

H.265+/H.265/H.264+/H.264 encoding, ONVIF (Profile S/Profile T); CGI; P2P; Genetec

Micro SD card (support max. 256 GB)

Wi-Fi IEEE802.11b/g/n 2.4–2.4835 GHz

Dome design, IK10, IP67, -40°C~+60°C, 12VDC power, adapter included

Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/Wi-Fi-Series/2MP/IPC-HDBW1230DE-SW

Model

IPC-HDBW1230DE-SW-0280B

Camera design

Dome

Network Camera Type

Fixed Dome/HDTV/Megapixel/Outdoor

Pixel Resolution

2 Mega Pixel

Focal Length

2.8 mm

IR Illumination

Yes

Sensor size

1/3”

Lens Mount

M12

Min. Illumination

0.0025 Lux

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Supports card capacities up to

256GB

Power options

12V

Power consumption

4.9 Watts

Environment

Outdoor

Operating temperature range

-40°C~+60°C

Dimensions

Φ110.7 mm × 88.7 mm

Units per Shipping Box

1

Shipping Box Depth

15 cm

Shipping Box Height

14.5 cm

Shipping Box Weight

0.646 kg

Shipping Box Width

12.5 cm

Unit Calculated Volume

0.002719 cubm

Product Net Weight

0.414 kg

Unit Calculated Weight

0.646 kg

Unit Box Width

0.125

Unit Box Length

0.15

Unit Box Height

0.145

Full Description Line

Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 2 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/3”|Lens Mount M12|Min. Illumination 0.0025 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 256GB|Power options 12V|Environment Outdoor|Operating temperature range -40°C~+60°C|Dimensions Φ110.7 mm × 88.7 mm

Category Code

FNC
