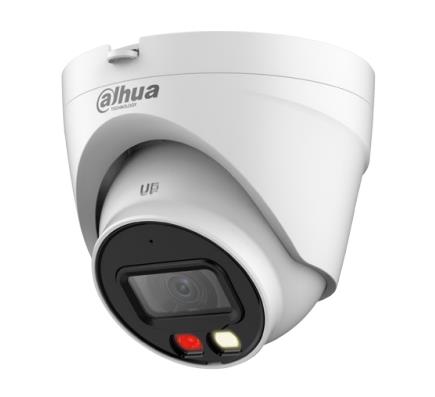

NET CAMERA 2MP IR EYEBALL/IPC-HDW1239V-A-IL-0280B DAHUA

> 2-MP 1/2.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2 MP (1920× 1080)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access.
> Built in Mic.
> 12 VDC/PoE power supply,
> IP67 protection.
> Supports human detection.
> Focal Length / Field of View: 2.8 mm / 104°

Description

> 2-MP 1/2.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2 MP (1920× 1080)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access.
> Built in Mic.
> 12 VDC/PoE power supply,
> IP67 protection.
> Supports human detection.
> Focal Length / Field of View: 2.8 mm / 104°

Vendor Homepage

www.dahuasecurity.com/cz/products/All-Products/Network-Cameras/Entry-Series/2MP/IPC-HDW1239V-A-IL

Model

IPC-HDW1239V-A-IL-0280B

Camera design

Eyeball

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

2 Mega Pixel

Focal Length

2.8mm

IR Illumination

Yes

Sensor size

1/2.8

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0005 Lux

Effective pixels

1920 (H) × 1080 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Colour

White

Dimensions

100.9 mm × Φ109.9 mm

Units per Shipping Box

1

Shipping Box Depth

12 cm

Shipping Box Height

11.5 cm

Shipping Box Weight

0.46 kg

Shipping Box Width

12 cm

Unit Calculated Volume

0.001656 cubm

Product Net Weight

0.33 kg

Unit Calculated Weight

0.46 kg

Unit Box Width

0.12

Unit Box Length

0.12

Unit Box Height

0.115

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 2 Mega Pixel|Focal Length 2.8mm|IR Illumination|Sensor size 1/2.8|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0005 Lux|Effective pixels 1920 (H) × 1080 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 100.9 mm × Φ109.9 mm

Category Code

FNC
