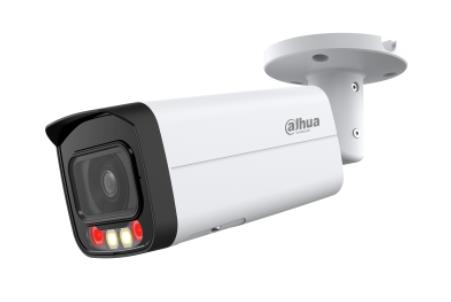

NET CAMERA 4MP BULLET/IPC-HFW2449T-AS-IL-0360B DAHUA

4MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera
> 4-MP 1/2.9 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED, the max. IR light distance is 60 m and max. warm light is 50 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 (optional) protection.
> SMD Plus.

Description

4MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera
> 4-MP 1/2.9 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED, the max. IR light distance is 60 m and max. warm light is 50 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 (optional) protection.
> SMD Plus.

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HFW2449T-AS-IL

Category Code

FNC

Unit Box Height

0.145

Unit Box Length

0.31

Unit Box Width

0.155

RJ45

1

Аудио вход

1

Аудио выход

1

Тревожный вход

1

Тревожный выход

1

Модель

IPC-HFW2449T-AS-IL-0360B

Дизайн

Bullet

Тип устройства

HDTV/Megapixel/Outdoor

Разрешение

2688 (H) × 1520 (V)

Инфракрасная подсветка

Да

Матрица

1/2.9

Крепление объектива

M12

Минимальное освещение

0.0006 лк

Скорость электронного затвора

Auto/Manual 1/3 s–1/100,000 s

Поддерживает емкость карты до

256GB

Параметры питания

12V/PoE

Требования к электропитанию

12 VDC/PoE (802.3af)

Потребляемая мощность

2.6 Вт

Тип

Уличная

Диапазон рабочих температур

–40 °C to +60 °C

Цвет

Белый

Размер

238.5 × 90.7 × 90.7 mm

Количество в транспортной упаковке

1

Объем

0.006967 м3

Вес без упаковки

0.72 кг

Вес в упаковке

1 кг
