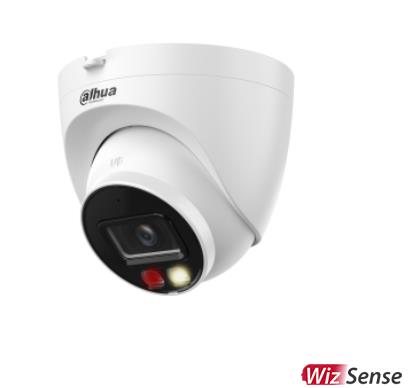

NET CAMERA 4MP EYEBALL/IPC-HDW2449T-S-IL-0280B DAHUA

> 4-MP 1/2.9 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
> Focal Length 2.8mm. Field of View 95°

Description

> 4-MP 1/2.9 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
> Focal Length 2.8mm. Field of View 95°

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDW2449T-S-IL

Category Code

FNC

Unit Box Height

0.11

Unit Box Length

0.12

Unit Box Width

0.12

RJ45

1

Дизайн

Eyeball

Тип устройства

HDTV/Megapixel/Outdoor

Разрешение

2688 (H) × 1520 (V)

Фокусное расстояние

2.8mm

Инфракрасная подсветка

Да

Матрица

1/2.9

Микрофон

Да

Крепление объектива

M12

Минимальное освещение

0.0006 лк

Скорость электронного затвора

Auto/Manual 1/3 s–1/100,000 s

Поддерживает емкость карты до

256GB

Параметры питания

12V/PoE

Требования к электропитанию

12 VDC/PoE (802.3af)

Тип

Уличная

Диапазон рабочих температур

–40 °C to +60 °C

Цвет

Белый

Размер

100.9 mm × Φ109.9 mm

Количество в палете

0

Количество в транспортной упаковке

30

Объем

0.00196 м3

Вес без упаковки

0.37 кг

Вес в упаковке

0.545 кг
