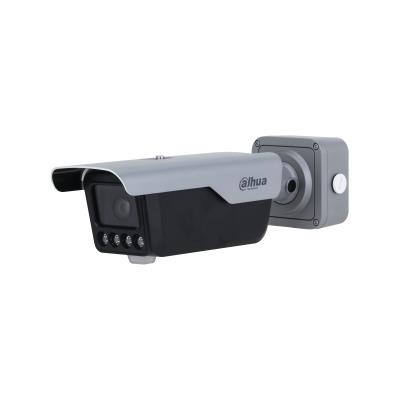

NET CAMERA 4MP IR BULLET ANPR/ITC413-PW4D-IZ1 DAHUA

ITC413-PW4D Series

Dahua Access ANPR Camera

> High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7.

> Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and color of vehicles.

> Built-in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers.

> Built-in LED for simplified installation and commissioning.

> All-in-one structure with junction box and bracket, and it is also low power consumption.

> IP67 and IK10 rated.

> Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets. Custom audios can also be imported and edited.

> Easily adapts to scenarios through its motorized vari-focal lens.

Description

ITC413-PW4D Series

Dahua Access ANPR Camera

> High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7.

> Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and color of vehicles.

> Built-in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers.

> Built-in LED for simplified installation and commissioning.

> All-in-one structure with junction box and bracket, and it is also low power consumption.

> IP67 and IK10 rated.

> Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets. Custom audios can also be imported and edited.

> Easily adapts to scenarios through its motorized vari-focal lens.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Mobile--Traffic/Entrance--Exit-Control-Products/Access-ANPR-Cameras/ITC413-PW4D-Series

Model

ITC413-PW4D

Camera design

Bullet

Network Camera Type

Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.7 mm–12 mm

IR Illumination

Yes

Sensor size

1/1.8 CMOS

Microphone

Built-in

Electronic Shutter Speed

Auto/Manual 1/25s~1/10,000s

Audio-Out

1

RJ45

1

RS-485

2

Speaker-Out

1

Supports card capacities up to

256GB

Operating temperature range

–30 °C to +65 °C

Dimensions

396.0 mm × 120.8 mm × 127.8 mm

Units per Shipping Box

1

Shipping Box Depth

45 cm

Shipping Box Height

23 cm

Shipping Box Weight

3.64 kg

Shipping Box Width

24.5 cm

Unit Calculated Volume

0.02536 cubm

Product Net Weight

2.3 kg

Unit Calculated Weight

3.64 kg

Unit Box Width

0.245

Unit Box Length

0.45

Unit Box Height

0.23

Full Description Line

Type Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7 mm–12 mm|IR Illumination|Sensor size 1/1.8 CMOS|Microphone Built-in|Electronic Shutter Speed Auto/Manual 1/25s~1/10,000s|1xAudio-Out|1xSpeaker-Out|1xRJ45|2xRS-485|Supports card capacities up to 256GB|Operating temperature range –30 °C to +65 °C|Dimensions 396.0 mm × 120.8 mm × 127.8 mm

Category Code

FNC
