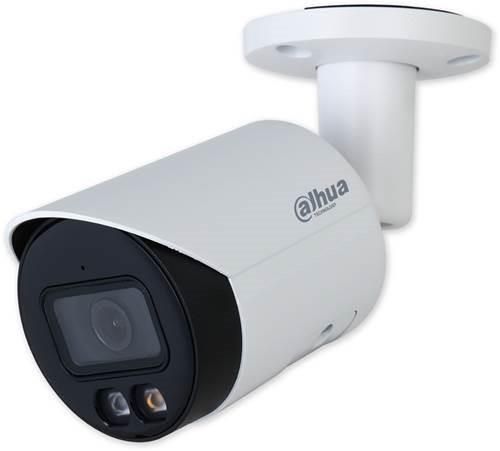

NET CAMERA 4MP IR BULLET/IPC-HFW2449S-S-IL-0280B DAHUA

- 1/2.9” 4Megapixel progressive CMOS, 2688 × 1520 @ 20 fps
- Minimum illumination: 0.008 lux @ F1.6 (Color, 30 IRE), 0.0008 [email protected] (B/W, 30 IRE), 0 lux (Illuminator on)
- 2.8 mm fixed lens (95°)
- Up to 30 meters Illumination: white warm light/IR LED
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P
- No alarm I/O, no audio I/O, Built-in MIC
- Micro SD card up to 256GB supported
- Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 7.3W max
- Smart capabilities: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Free IP monitoring software available

Description

- 1/2.9” 4Megapixel progressive CMOS, 2688 × 1520 @ 20 fps
- Minimum illumination: 0.008 lux @ F1.6 (Color, 30 IRE), 0.0008 [email protected] (B/W, 30 IRE), 0 lux (Illuminator on)
- 2.8 mm fixed lens (95°)
- Up to 30 meters Illumination: white warm light/IR LED
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P
- No alarm I/O, no audio I/O, Built-in MIC
- Micro SD card up to 256GB supported
- Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 7.3W max
- Smart capabilities: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HFW2449S-S-IL

Model

IPC-HFW2449S-S-IL-0280B

Camera design

Bullet

Network Camera Type

Fixed/Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.8 mm

IR Illumination

Yes

Sensor size

1/2.9 CMOS

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0008 Lux

Effective pixels

Auto/Manual 1/3 s–1/100,000 s

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

PoE / 12VDC power

Power consumption

7.3 Watts

Environment

Outdoor

Operating temperature range

-40°C~+60°C

Dimensions

166.2 mm × 70 mm × 70 mm

Units per Shipping Box

1

Shipping Box Depth

20.5 cm

Shipping Box Height

11 cm

Shipping Box Weight

0.588 kg

Shipping Box Width

10 cm

Unit Calculated Volume

0.002255 cubm

Product Net Weight

0.48 kg

Unit Calculated Weight

0.588 kg

Unit Box Width

0.1

Unit Box Length

0.205

Unit Box Height

0.11

Full Description Line

Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.9 CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0008 Lux|Effective pixels Auto/Manual 1/3 s–1/100,000 s|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power|Environment Outdoor|Operating temperature range -40°C~+60°C|Dimensions 166.2 mm × 70 mm × 70 mm

Category Code

FNC
