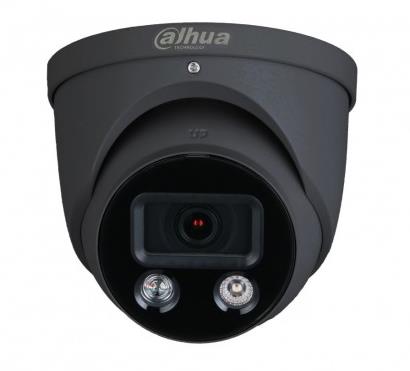

NET CAMERA 4MP IR EYEBALL/HDW1439V-A-IL-0280B-B DAHUA

· 4-MP 1/2.9 CMOS image sensor, low luminance, and high definition image.
· Outputs max. 4 MP (2560 × 1440)@25/30 fps.
· H.265 codec, high compression rate, ultra-low bit rate.
· Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m.
· WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
· ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
· Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access.
· Built in Mic.
· 12 VDC/PoE power supply,easy for installation.
· IP67 protection.
· Supports human detection.

Description

· 4-MP 1/2.9 CMOS image sensor, low luminance, and high definition image.
· Outputs max. 4 MP (2560 × 1440)@25/30 fps.
· H.265 codec, high compression rate, ultra-low bit rate.
· Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m.
· WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
· ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
· Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access.
· Built in Mic.
· 12 VDC/PoE power supply,easy for installation.
· IP67 protection.
· Supports human detection.

Vendor Homepage

www.dahuasecurity.com/ceen/search/products?keyword=IPC-HDW1439V-A-I

Model

DHI-IPC-HDW1439V-A-IL-0280B-B

Camera design

Eyeball

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

4 Mega Pixel

IR Illumination

Yes

Sensor size

1/2.9

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0006 Lux

Effective pixels

2560 (H) × 1440 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)

Power consumption

5.7 Watts

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Colour

Black

Dimensions

100.9 mm × Φ109.9 mm

Units per Shipping Box

1

Shipping Box Depth

12.5 cm

Shipping Box Height

11 cm

Shipping Box Weight

0.45 kg

Shipping Box Width

12 cm

Unit Calculated Volume

0.00165 cubm

Product Net Weight

0.33 kg

Unit Calculated Weight

0.45 kg

CnCode

85258900

Unit Box Width

0.12

Unit Box Length

0.125

Unit Box Height

0.11

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|IR Illumination|Sensor size 1/2.9|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0006 Lux|Effective pixels 2560 (H) × 1440 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour Black|Dimensions 100.9 mm × Φ109.9 mm

Category Code

FNC
