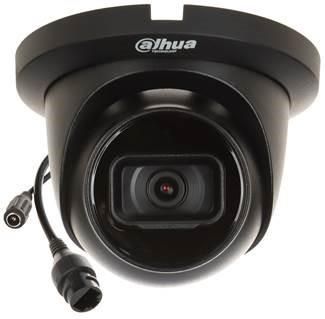

NET CAMERA 4MP IR EYEBALL/HDW5442TM-ASE-0280B-S3-B DAHUA

- 1/1.8” 4Megapixel progressive scan CMOS, 2688 × 1520 @30FPS
- Minimum illumination: 0.0007 lux @F1.6 (Color, 30IRE); 0.0004 lux @F1.6 (B/W, 30IRE); 0 lux (Illuminator on)
- True Day/Night with ICR Filter, BLC / HLC / True WDR (140dB), 3D DNR, Defog
- 2.8 mm fixed lens (112°)
- Up to 50 meters Smart IR Illumination
- H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG, ONVIF (Profile S/Profile G), CGI, Milestone
- Micro SD: Max 256GB, 1/1 Audio I/O, 1/1 Alarm I/O, built-in Mic
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, people counting, etc.
- Eyeball turret design, metal shell, IP67 -40°C~+60°C
- Power ePoE / PoE / 12VDC power, 7.2W max
- Free IP monitoring software available

Description

- 1/1.8” 4Megapixel progressive scan CMOS, 2688 × 1520 @30FPS
- Minimum illumination: 0.0007 lux @F1.6 (Color, 30IRE); 0.0004 lux @F1.6 (B/W, 30IRE); 0 lux (Illuminator on)
- True Day/Night with ICR Filter, BLC / HLC / True WDR (140dB), 3D DNR, Defog
- 2.8 mm fixed lens (112°)
- Up to 50 meters Smart IR Illumination
- H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG, ONVIF (Profile S/Profile G), CGI, Milestone
- Micro SD: Max 256GB, 1/1 Audio I/O, 1/1 Alarm I/O, built-in Mic
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, people counting, etc.
- Eyeball turret design, metal shell, IP67 -40°C~+60°C
- Power ePoE / PoE / 12VDC power, 7.2W max
- Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Series/5-Series/4MP/IPC-HDW5442TM-ASE

Model

IPC-HDW5442TM-ASE-0280B-S3-B

Camera design

Eyeball

Network Camera Type

Fixed/Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.8mm

IR Illumination

Yes

Sensor size

1/1.8”CMOS

Microphone

Built-in

Min. Illumination

0.0004 Lux

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

ePoE / PoE / 12VDC

Power consumption

7.2 Watts

Environment

Outdoor

Operating temperature range

-40°C~+60°C

Colour

Black

Units per Shipping Box

1

Shipping Box Depth

15 cm

Shipping Box Height

14 cm

Shipping Box Weight

0.725 kg

Shipping Box Width

14.5 cm

Unit Calculated Volume

0.003045 cubm

Product Net Weight

0.5 kg

Unit Calculated Weight

0.725 kg

CnCode

85258900

Unit Box Width

0.145

Unit Box Length

0.15

Unit Box Height

0.14

Full Description Line

Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8mm|IR Illumination|Sensor size 1/1.8”CMOS|Microphone Built-in|Min. Illumination 0.0004 Lux|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements ePoE / PoE / 12VDC|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour Black

Category Code

FNC
